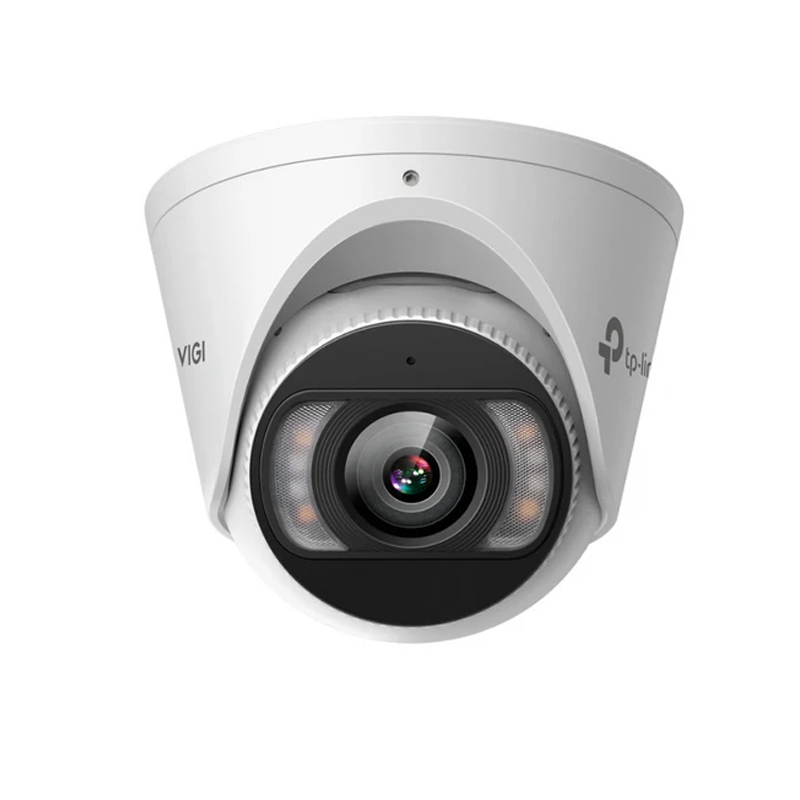

TP-Link VIGI 8MP Full-Color Turret Network Camera

TP-Link VIGI 8MP Full-Color Turret Network Camera

4K (8MP) Ultra HD and 24h Full-Color

Human & Vehicle Classification

Smart Detection

Smart Video Enhancement Technology

Active Defense and Two-Way Audio

IP67 Waterproof

H.265+ Compression Technology

12V DC/PoE

CAMERA+DC3:D40

Image Sensor

1/2.7” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

LENS

Type

Fixed Focal Lens

Focal Length

2.8/4mm

Aperture

F1.6

FOV

2.8mm:

Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

4mm:

Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°

Lens Mount

M12*P 0.5

DORI Distance

2.8mm

Detect: 85 m (278 ft)

Observe: 35 m (116 ft)

Recognize: 17 m (56 ft)

Identify: 8 m (28 ft)

4mm

Detect: 107 m (350 ft)

Observe: 44 m (146 ft)

Recognize: 21 m (70 ft)

Identify: 11 m (35 ft)

Angle Adjustment (Manual)

Range

Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°

ILLUMINATOR

IR LED

Quantity: 4

Range: 30 m

Wavelength: 850nm

White LED

Quantity: 4

Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution

3840 X 2160

Main Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution:

3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,

1280x720

Note:

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

If 120dB is turned on, the frame rate can only support up to 20fps.

Sub-Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution:

704x576,640x480, 352x288, 320x240

Note:

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

If 120dB is turned on, the frame rate can only support up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 6 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

120 dB

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF

Yes

API

Open Network Video Interface (Profile S)

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI, VIGI VMS

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
