تي بي لينك, سويش عدد 5 منافذ ال اس 105 جي

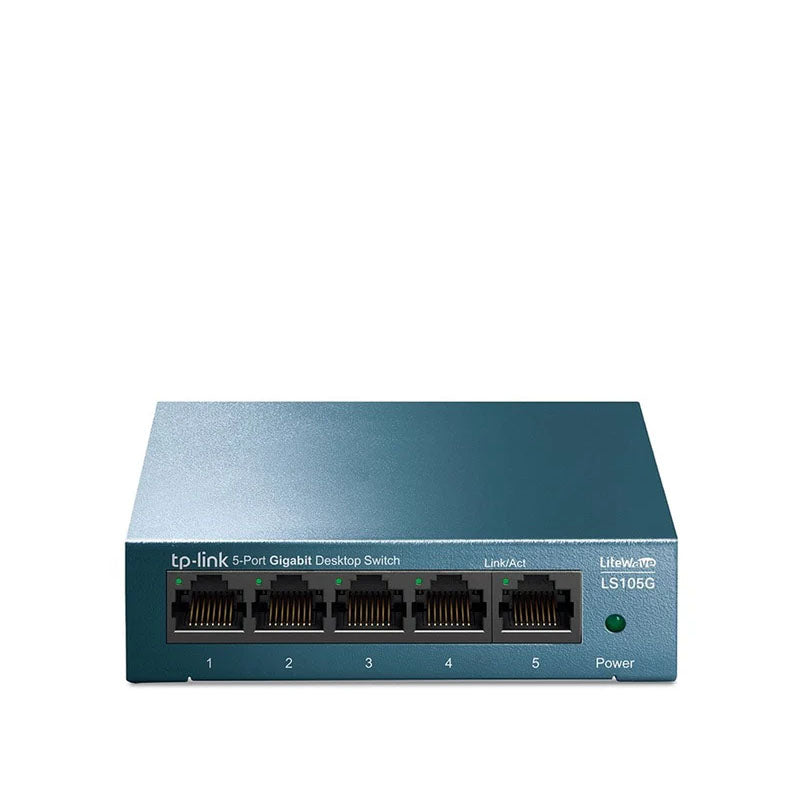

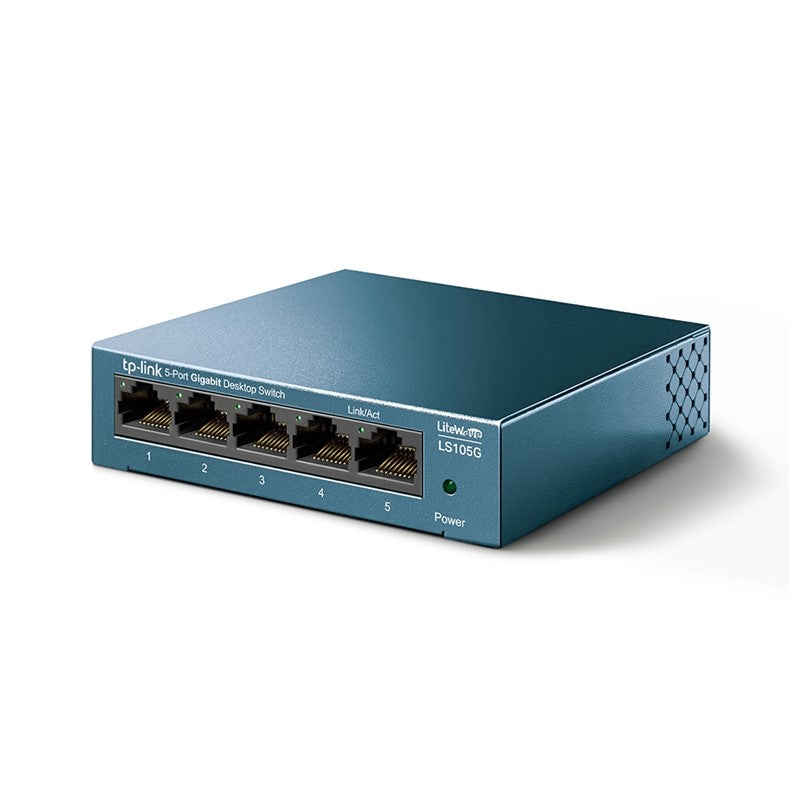

TP-Link TL-LS105G 5-Port Gigabit Desktop Switch

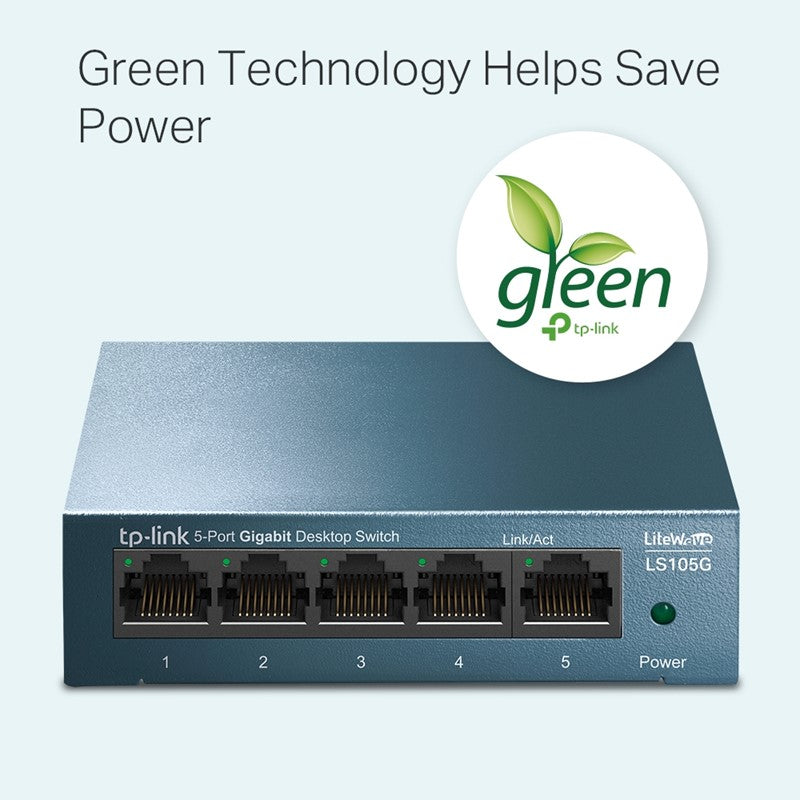

Green Ethernet technology saves power

IEEE 802.3X flow control provides reliable data transfer

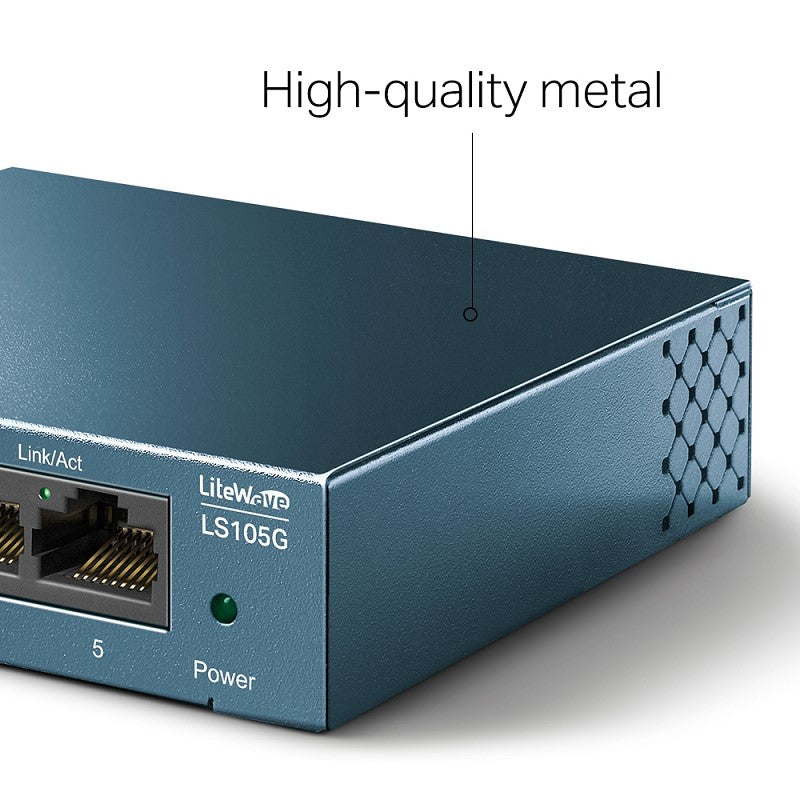

Steel housing, desktop or wall-mounting design

Support 802.1p/DSCP QoS function

Plug and play, no configuration needed

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface

5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 5VDC / 0.6A)

LED Indicator

System Power
Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Max Power Consumption

2.776W (220V/50Hz)

Max Heat Dissipation

9.466 BTU/h

PERFORMANCE

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

2K

Packet Buffer Memory

1 Mb

Jumbo Frame

16 KB

Software Features

Advanced Features

Green Technology
802.3X Flow Control
802.1P/DSCP QoS

Transfer Method

Store and Forward

Others

Certification

CE, FCC, RoHS

Package Contents

5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
