- TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

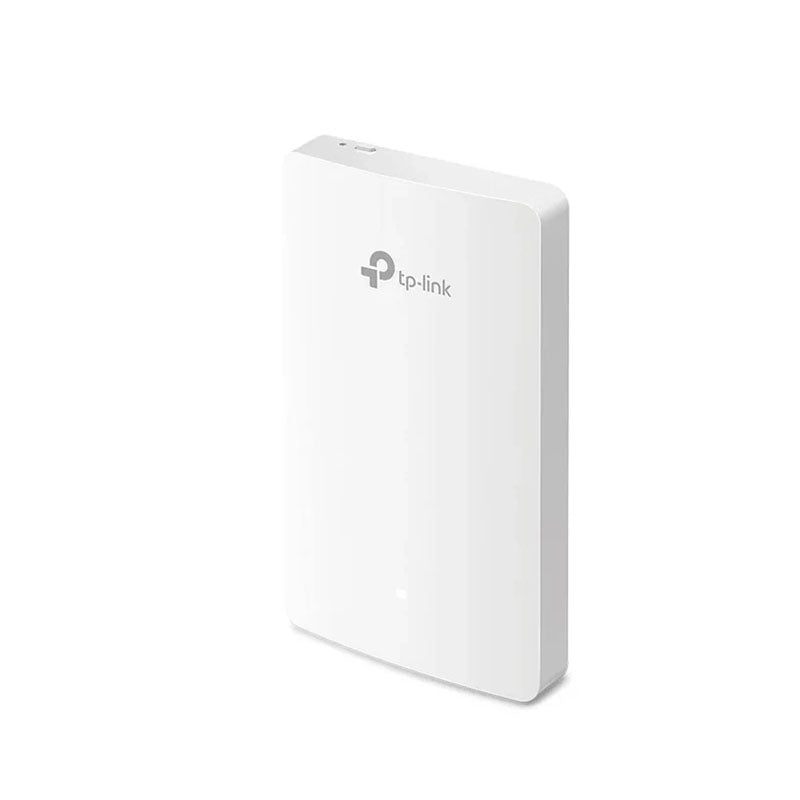

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- الخصائص
- وصف
- معلومات الشحن
Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.
Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
Centralized Management: Cloud access and Omada app for mobility and easy management.
Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and Dormitories.
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
 |

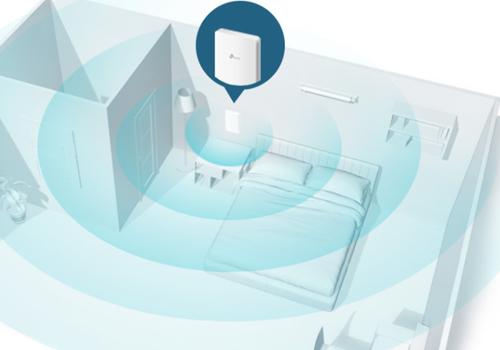

Dedicated Complete, Private Wi-Fi Network in Each Room An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage. |
 |

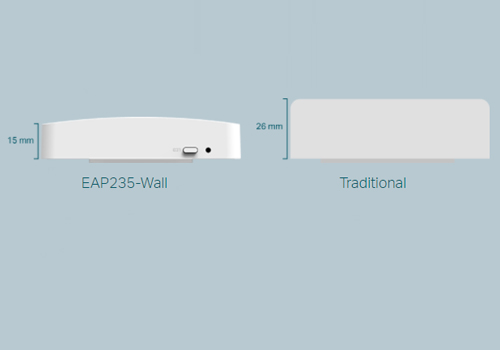

Absolute Thinnest, Inconspicuous Design The thinnest wall plate AP available only 15 mm featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room. |
 |

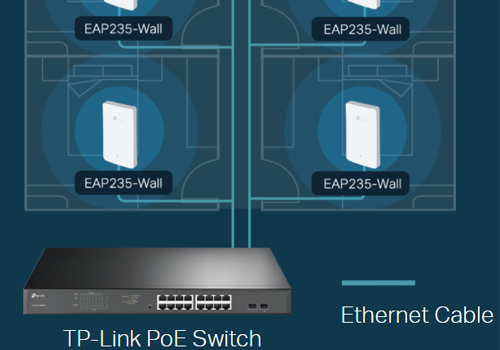

Effortless Deployment with PoE Powered With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go. |
 |

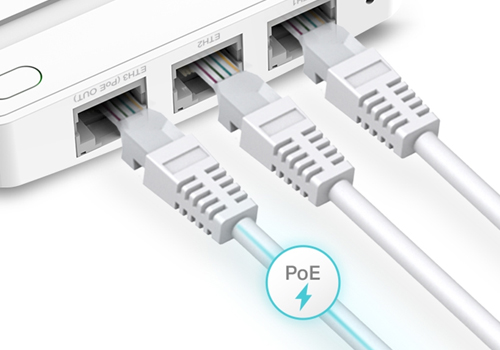

Full Gigabit Ports to Bridge Network Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables. |
Specifications:
|
Interface |
Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE |
|
|
Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port |
|
Physical Security Lock |
Yes |
|
Button |
Reset |
|
Power Supply |
802.3af/802.3at PoE |
|
Power Consumption |
9.8 watts |
|
|
24.4 watts with 13w PoE output |
|
Dimensions |
5.6 × 3.4 × 0.8 in. |
|
|
143 × 86 × 20 mm |
|
Antenna |
2.4 GHz: 2× 4 dBi |
|
|
5 GHz: 2× 4 dBi |
|
Mounting |
Wall Plate Mounting |
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11a/b/g/n/ac |
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
5 GHz: Up to 867 Mbps |
|
|
2.4 GHz: Up to 300 Mbps |
|
Wireless Functions |
16 SSIDs (Up to 8 SSIDs on each band) |
|
|
Enable/ disable SSID broadcast |
|
|
Automatic channel assignment |
|
|
Transmit power control (adjustable in 1 dBm step) |
|
|
QoS (WMM) |
|
|
Band steering |
|
|
Beamforming |
|
|
Load balance |
|
|
Rate limit |
|
|
Scheduled reboot |
|
|
Wireless scheduled on/off |
|
|
Wireless Statistics based on SSID, access point, or client |
|
Wireless Security |
Captive portal authentication |
|
|
Access control list |
|
|
Wireless MAC address filtering |
|
|
Wireless isolation between clients |
|
|
SSID to VLAN Mapping |
|
|
LAN port-based VLAN |
|
|
Rogue AP detection |
|
|
802.1X EAP support |
|
|
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
|
Transmission Power |
≤21 dBm (2.4 GHz) |
|
|
≤21 dBm (5 GHz) |
|
Omada App |
Yes |
|
Centralized Management |
Omada Cloud-Based Controller |
|
|
Omada Hardware Controller (OC300) |
|
|
Omada Hardware Controller (OC200) |
|
|
Omada Software Controller |
|
Cloud Access |
Yes |
|
Email Alerts |
Yes |
|
LED ON/OFF Control |
Yes |
|
Management MAC Access Control |
Yes |
|
SNMP |
v1, v2c |
|
System Logging Local/Remote Syslog |
Local/ remote syslog |
|
SSH |
Yes |
|
Web-based Management |
HTTP/ HTTPS |
|
L3 Management |
Yes |
|
Multi-site Management |
Yes |
|
Management VLAN |
Yes |
