تي بي لينك (EAP650-Wall) AX3000 نقطة وصول للوحة الحائط واي فاي 6

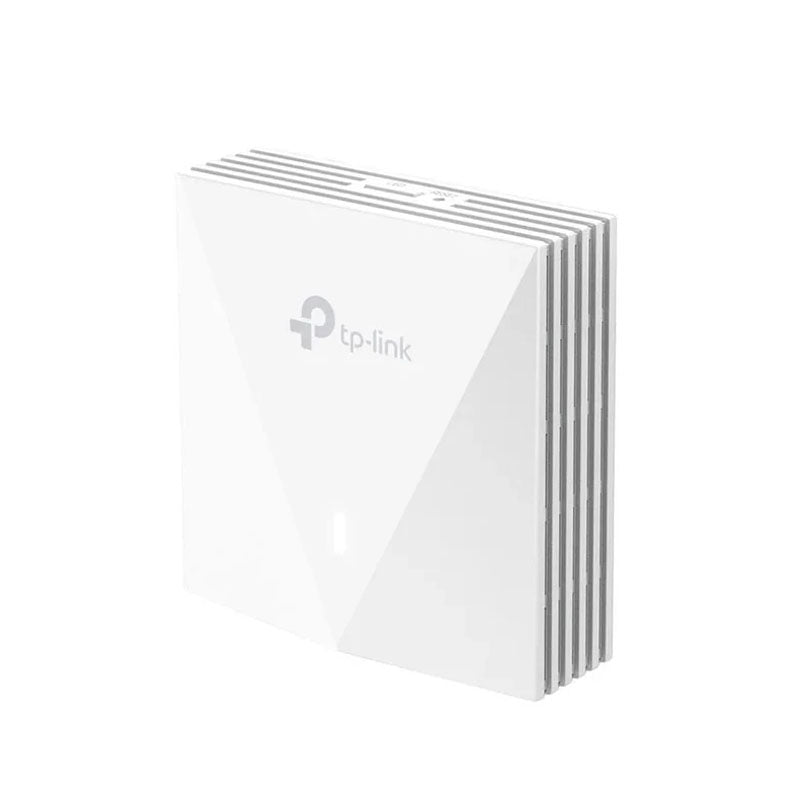

TP-Link (EAP650-Wall) AX3000 Wall Plate Wi-Fi 6 Access Point

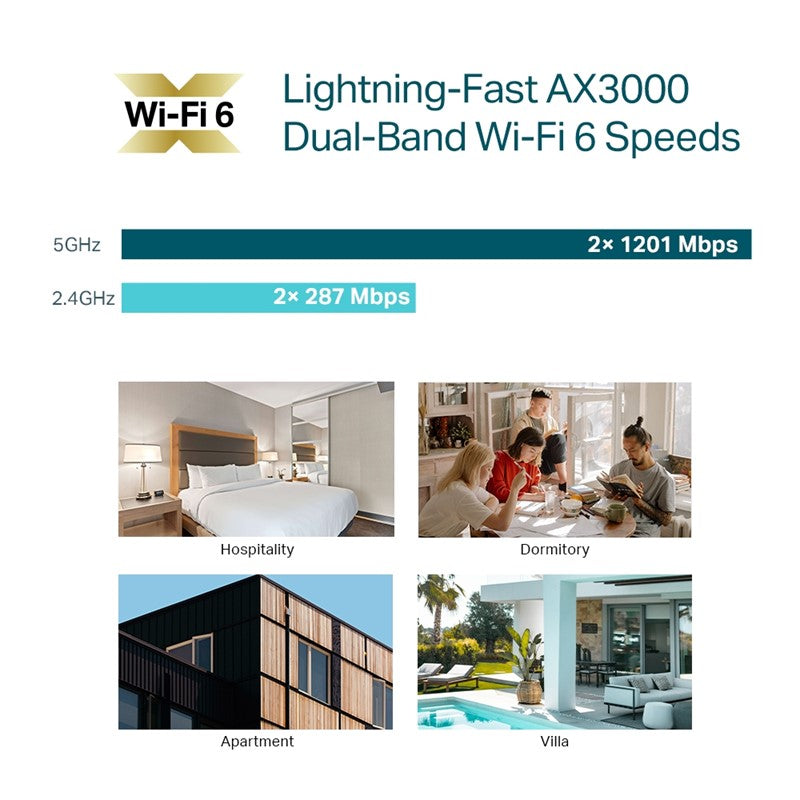

Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

Higher Network Efficiency: Deliver data to more devices at the same time with less lag.

Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

Gigabit Port: Connect wired devices with one downlink gigabit port.

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.

Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies

Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

Interface

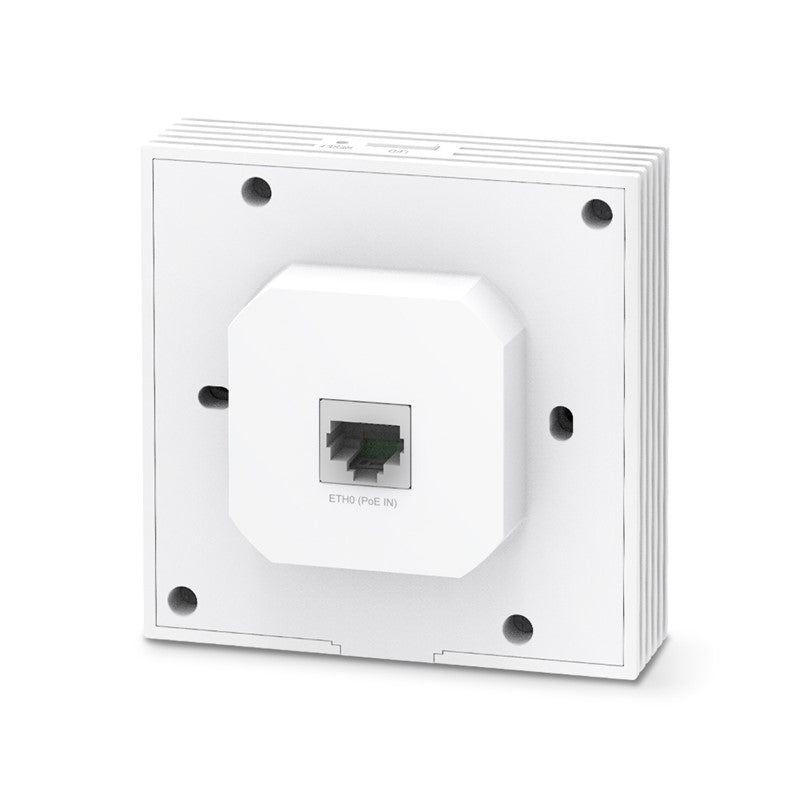

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port

Physical Security Lock

No

Button

Reset, LED

Power Supply

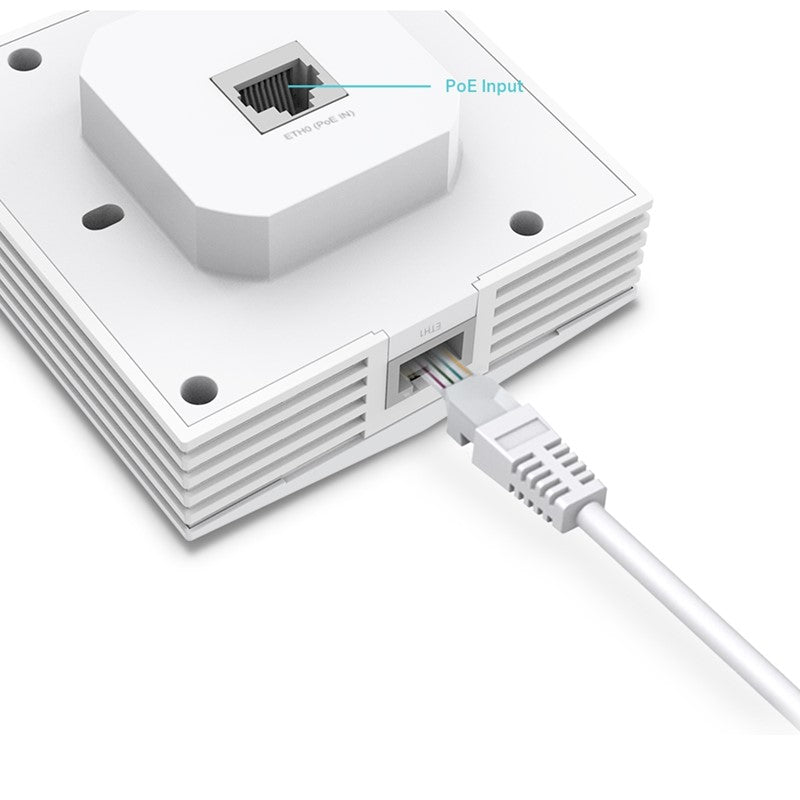

802.3af/at PoE

Power Consumption

EU: 11.5 W

Dimensions

86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in)

Antenna

2 Dual-Band Antennas

2.4 GHz: 2× 3 dBi

5 GHz: 2× 5 dBi

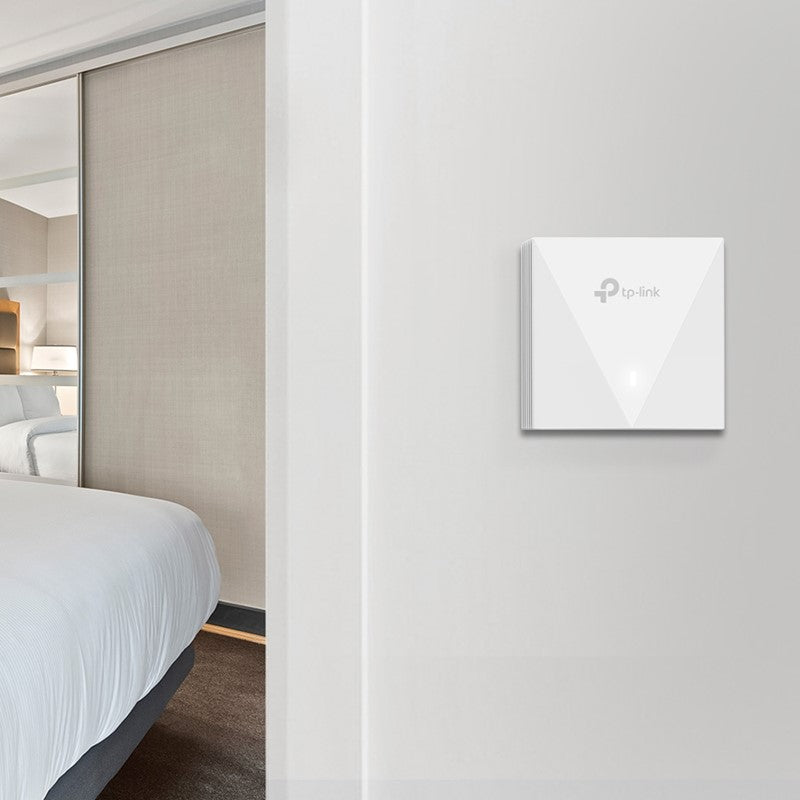

Mounting

Wall Plate Mounting (Kits included)

WIRELESS FEATURES

Maximum Number of Wireless Clients

100+^**

Concurrent Clients

100+

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:
<20 dBm (2.4GHz, EIRP)
<22 dBm (5GHz band1 & 2, EIRP)
<22 dBm (5GHz band3, EIRP)
