ليان لي, كيس كمبيوتر الألعاب لانكول 3 - ار جي بي - أبيض

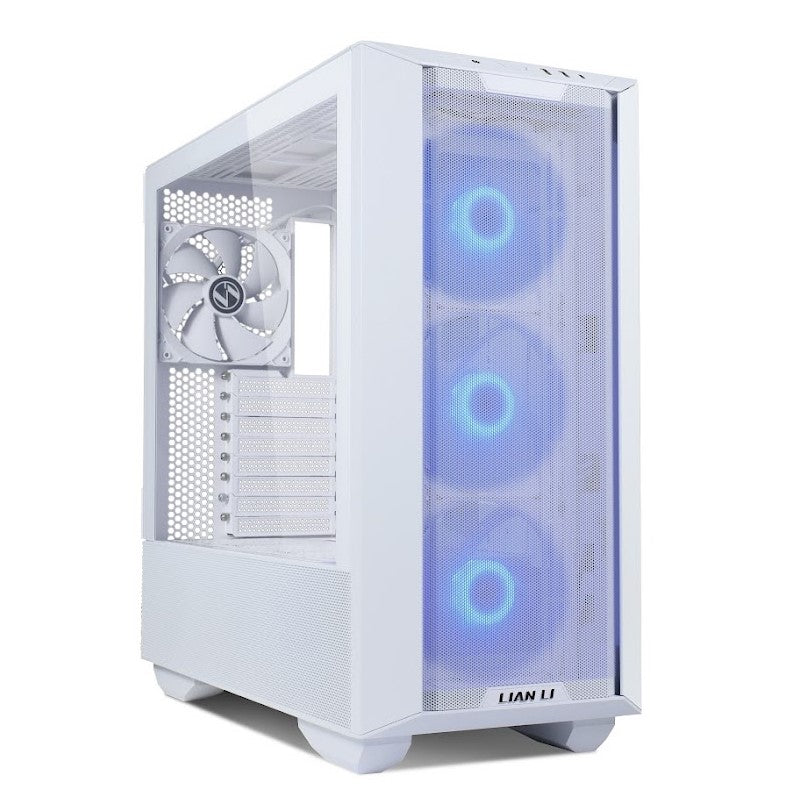

LIAN LI Lancool III RGB Mid Tower Gaming Case - White

LANCOOL III

LANCOOL III, the premium mid-tower chassis, offers better thermal performance than LANCOOL II by including 4 pre-installed 140mm PWM fans, and featuring fine mesh panels designed to ensure ample airflow is delivered to the high-end components while the system runs at peak performance.

Extreme Airflow Craftmanship

A fine mesh design has been implemented at the front, top, and both bottom side panels of the LANCOOL III.

Top And 2x Bottom Side Panels

The two bottom side panels provide sufficient airflow to efficiently cool the GPU when fans are installed above the PSU shroud

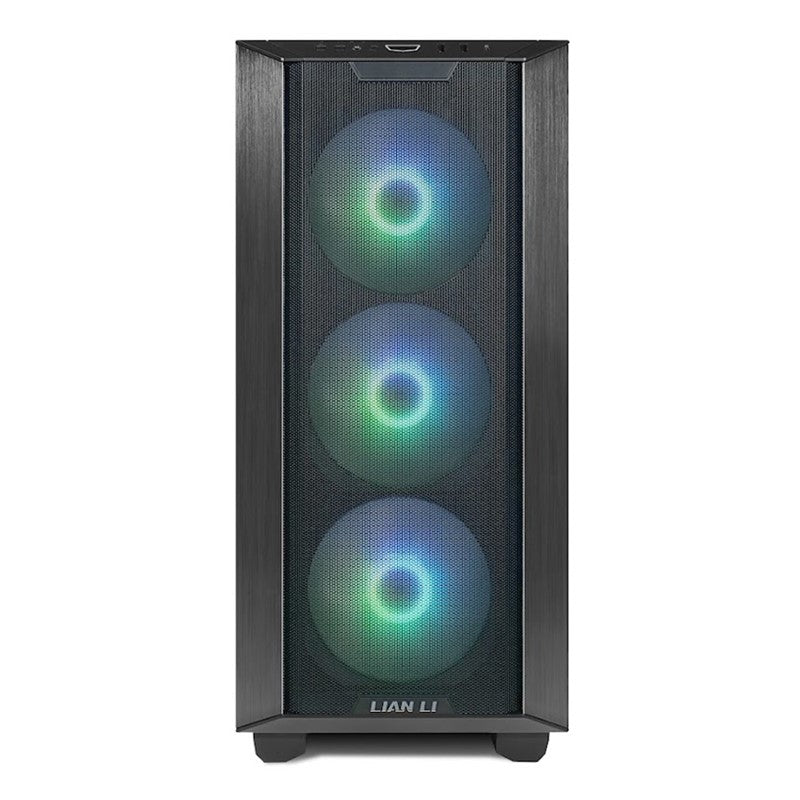

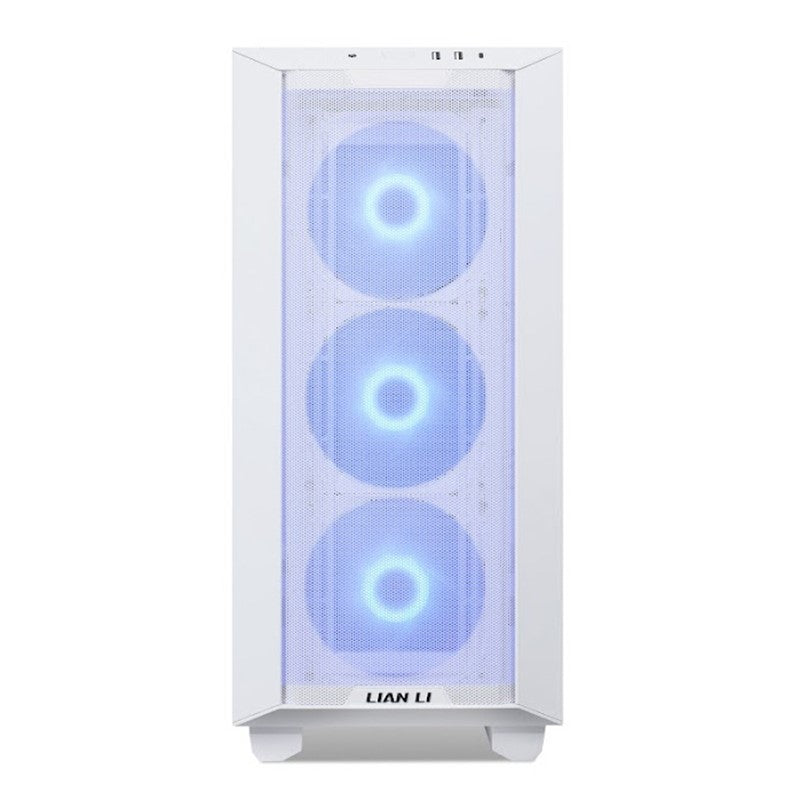

Front Panel

The 51% porosity offers an ample direct fresh air intake

Hinged Panels All Around

The hinged tempered glass side panels offer an unobstructed view of the interior configuration, while the bottom shroud panels provide quick access to the PSU and storage drives.

The two removable 4mm tempered glass panels located on each side of the case can be opened by pulling the front aluminum handle.

The mesh panels located on both sides of the PSU shroud area can be removed for cleaning when the front panel is unattached.

Flexible Configuration

With ample interior room, the LANCOOL III can offer different cooling and usage scenarios

Air Cooling

With high airflow stock fans, and air tower clearance up to 185mm, the LANCOOL III is ideal for an air-cooling build.

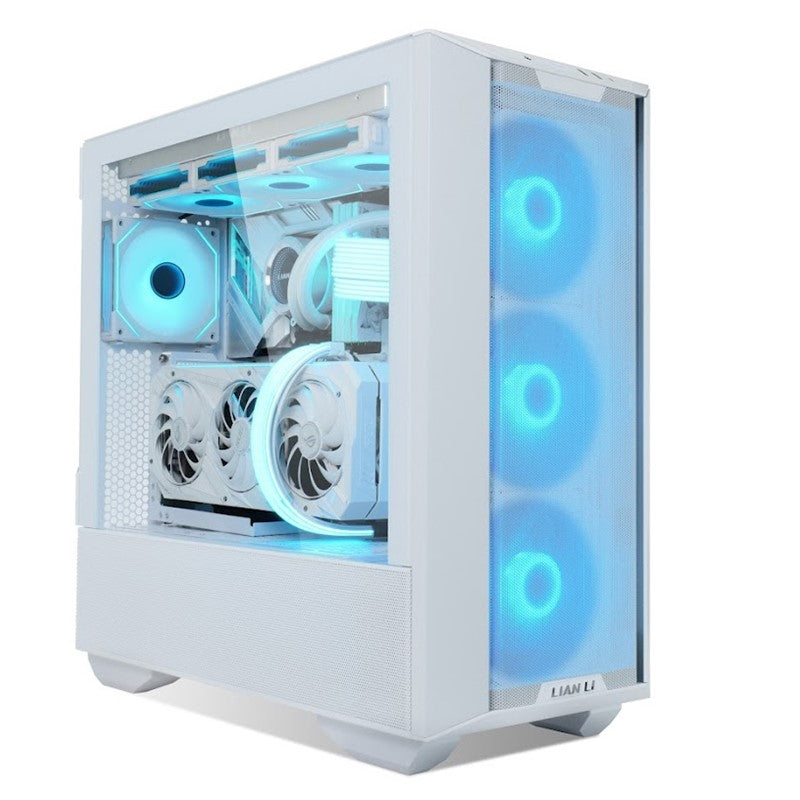

Aio Cooling

With ample front intake, the LANCOOL III can provide strong performance for an AIO cooling build. The top fan bracket can support up to 3 x 120mm/140mm fans and offers enough thickness clearance for an AIO with a 420 radiator/fan combo.

Custom Water Cooling

With the ability to support 3 × 360mm radiators simultaneously, the LANCOOL III can offer custom water-cooling enthusiasts, lots of imagination.

Spacious Cooling Support

The LANCOOL III is optimized for water-cooling and high-end thermal solutions. A maximum of 10 × 120mm fans or a large 420mm radiator can be mounted in the main chamber.

Multi-Way Front Fan/Radiator Bracket

The multi-way front fan bracket offers 4 different ways to mount a radiator or fans to cater to different cooling needs, and features a new latch/handle mechanism to easily secure it in place without the need of the locking thumbscrews.

The multi-way front fan bracket offers 4 different ways to mount a radiator or fans to cater to different cooling needs and features a new latch/handle mechanism to easily secure it in place without the need of the locking thumbscrews.

Removable Top Fan Bracket

The removable top fan bracket with offset fan mounting points allows for a thicker fan and radiator combo to be installed at the top of the LANCOOL III by providing enough clearance from the ram.

Modular PSU Shroud Bracket – Fan/ Pump/ SSD

The adjustable modular PSU shroud bracket can accommodate 1 x 360mm radiator, 3 x 120mm fans, 3 x 2.5” SSDs, or a pump/reservoir combo.

Back-and-forth adjustability to accommodate for different 360 radiator orientations.

Included Mounting Points For 3 × 2.5” SSDS

Additional pump/reservoir combos mounting points are provided.

Side Multi-Purpose Mounting Slots

Mounting slots beside the motherboard are provided at 105mm apart (standard 120mm fan mounting points) to allow the installation of a distro plate or a reservoir/pump bracket.

Extensive Storage Capacity

Multiple storage drive mounting locations are supported for up to 12 x 2.5” SSDs or 4 x 3.5” HDDs and 8 x 2.5” SSDs.

Adjustable Drive Cage

2 adjustable drive cages (each for 2 x 3.5” HDDs or 2 x 2.5” SSDs) can be individually removed or adjusted.

Toolless SSD Tray

Two spring-loaded SDD trays located behind the motherboard tray allow for a toolless installation of the drives.

Side SSD Tray

The side-mounted SSD trays located inside the right PSU shroud panel can support up to 3 x 2.5” SSDs or can be removed to improve airflow.

Comprehensive Cable Management

As the second chamber located on the right side is visible, great consideration has been given to cable management. The LANCOOL III features an upgraded solution to ensure neat cable routing with toolless magnetic cable cover doors, and a well-organized layout for hubs and cables.

3 Layers Velcro Straps

Holds 3 different sets of cables separately

Routing Velcro Straps

Provides a clear path for cables such as the CPU 8pin, fan cables, USB cable.

Layout For Fan Hubs

3 fan controllers/ fan hub mounting locations are provided between the large Velcro straps, with an additional one at the removable plate behind the motherboard

Hinged Cover Doors

Magnetic, hinged, and removable cable cover doors hide cable clusters and provide easy access at the same time

Sliding Cable Routing Cover

By slightly loosening the two back thumb screws, the cable cover can be adjusted to fit different sizes of motherboards.

Reversible Front I/O

Optimized for PC locate on a desk, the front I/O can be relocated to the bottom of the chassis.

Light Color Button (C)

7 static colors

Light Mode Button (M)

8 lighting effects

8th sync to motherboard or L-Connect

Press 3 seconds to turn off the lighting

Audio, Reset, Button, Power, Button, USB 3.0, USB Type C

Friendly PSU Installation

The removable PSU mounting bracket allows for PSU installation outside of the chassis, to then slide it in through from the rear.

Anti-Sag Bracket for Perfectly Horizontal GPU

A GPU anti-sag bracket is included for a seamless display of the hardware through the side tempered glass panels.

Optional Vertical GPU Kit

O11de-1x/1w

The O11D EVO Vertical GPU kit is compatible with LANCOOL III, offering adjustable clearance beneath the vertical GPU by installing it in different expansion slots.

Product Name

LIAN LI LANCOOL III RGB

Model

LANCOOL 3R-W

Color

White

Dimension

(D) 526mm x (W) 238mm x (H) 523mm

Motherboard

E-ATX (width: under 280mm)/ATX/MICRO-ATX/MINI-ITX

Psu Clearance

ATX (Under 220mm)

Materials

Aluminum (Door handles)

0.8mm SGCC (exterior and interior)

4.0mm tempered glass (both sides)

Included Fans

Front: 3 x 140mm ARGB PWM fans

(300~1650 RPM / DC 12 V, 0.23A, 0.35A / 83.5 CFM / 2.3 mm H2O / 33dB-A)

Rear: 1x 140mm PWM fan

(200~1800 RPM / DC 12 V, 0.24A / 83.5 CFM / 2.3 mm H2O / 33dB-A)

Fan Support

Front (multi-way fan/radiator bracket): 3 x 120mm or 3 x 140mm

Top: 3 x 120 or 3 x 140mm

Rear: 1 x 120mm or 140mm

Above PSU Chamber: 3 x 120mm

Radiator Support

Front: 360mm or 280mm

Top: 360mm or 420mm

Above PSU Chamber: 360mm

Gpu Length Clearance

435mm (Max)

Cpu Height Clearance

187mm (Max)

Storage

Behind MB tray: 2 x 2.5″ SSD

Behind right side PSU shroud panel: 3 x 2.5’’ SSD

Hard drive cage: 4 x 3.5″ HDD/2.5″ SSD

Above PSU chamber: 3 x 2.5″ SSD

Expansion Slot

8

Io Ports

1 x Power Button

1 x Reset Button

1 x Light Color Button (C)

1 x Light Mode Button (M)

2 x USB 3.0

1 x USB Type C

1 x Audio

Dust Filters

1 x Bottom (Tray)
