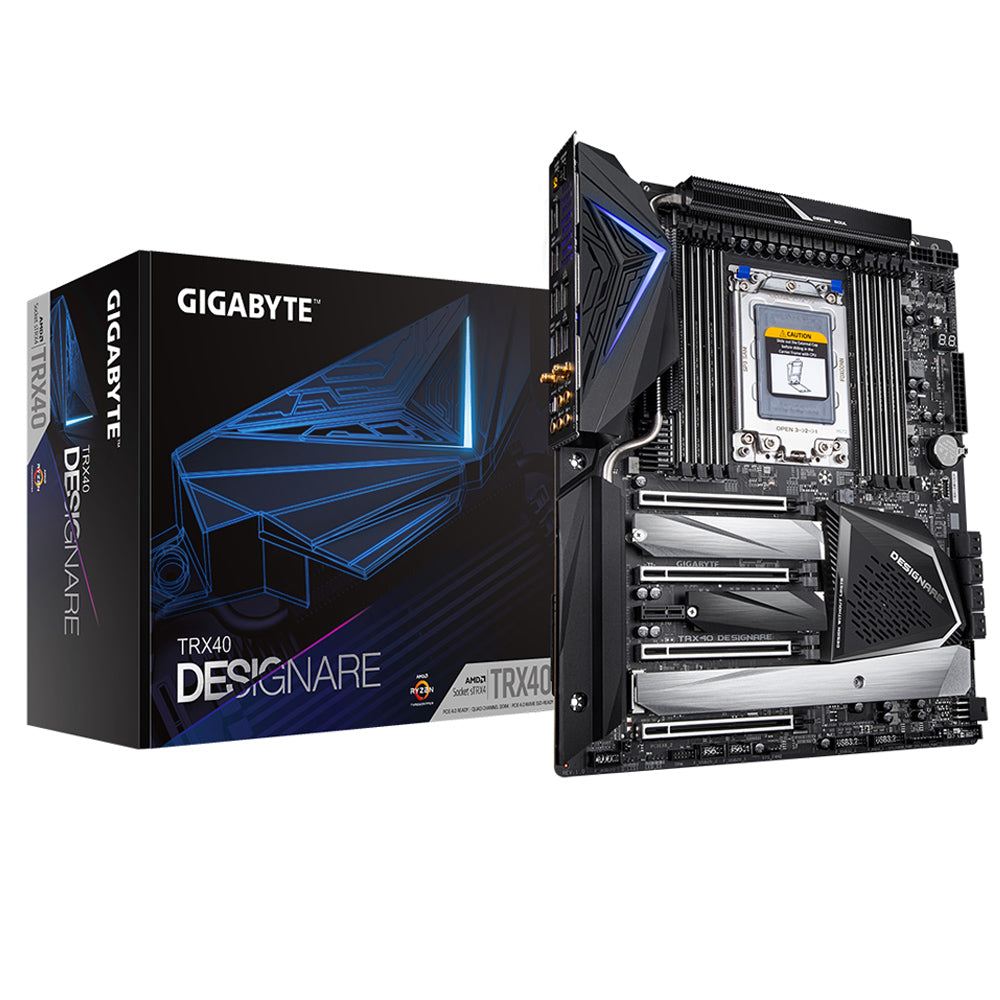

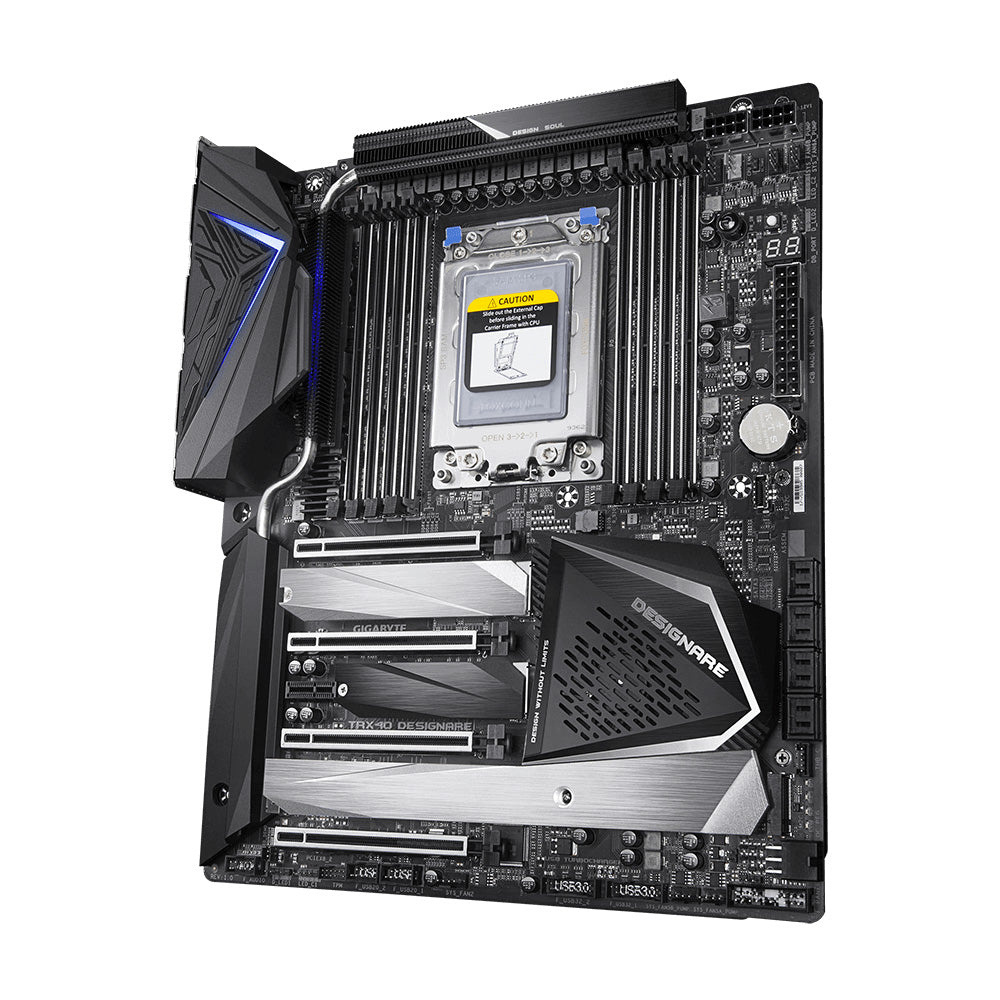

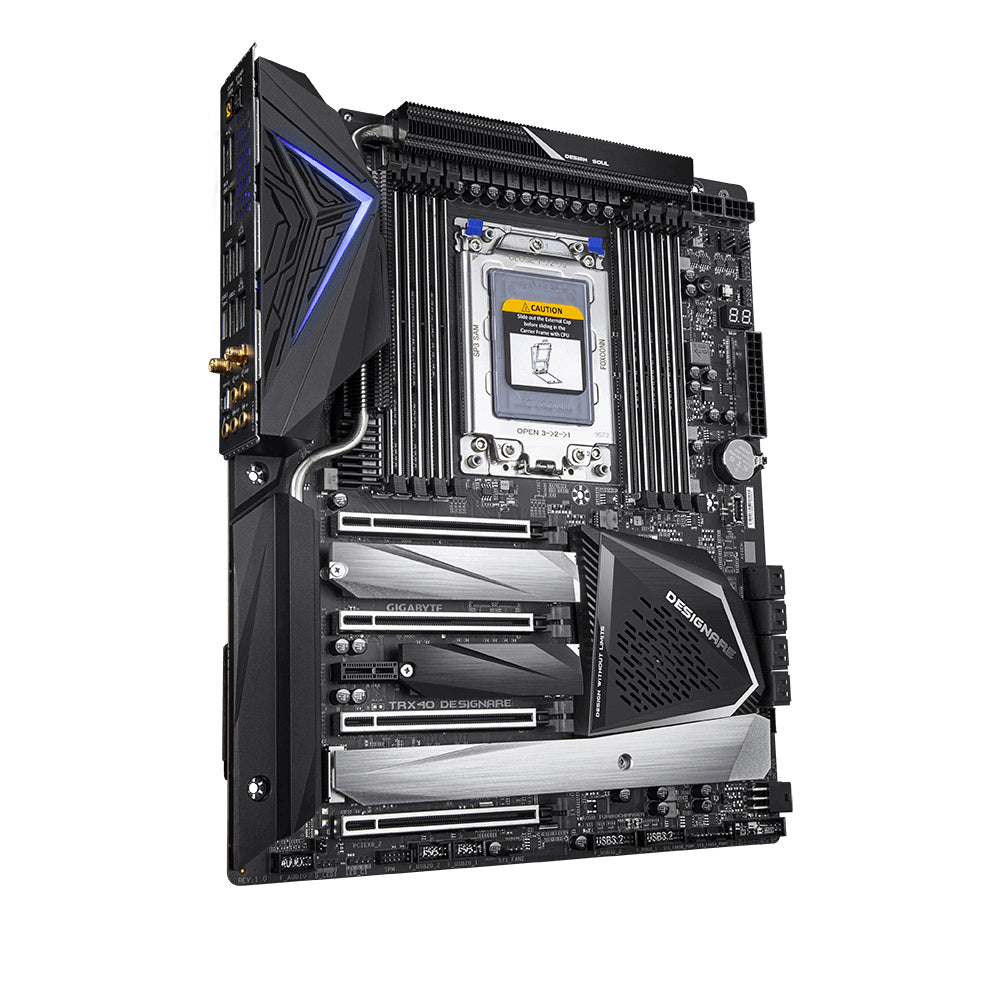

جيجا بايت, لوحة التحكم للألعاب تي ار اكس 40

Bundled 40 GB/s GC-Titan Ridge Add-In Card

The fastest 40Gb/s single-wire connection With bundled GC- Titan Ridge AIC, It delivers speeds of up to 40Gb/s transfer speed that's 2 times faster than previous generation. It provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 3 Thunderbolt devices without an additional hub or switch. In addition, it supports quick charging with the latest technology PD3.0.

2x Copper Design

GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

Smart Fan 5

With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

DTS: X® Ultra

Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs.

RGB Fusion 2.0

Support RGB Lighting Effect in Full Color

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

Easy Tune

GIGABYTE's Easy Tune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications

CPU

1. AMD Socket sTRX4:

Support 3rd Generation AMD Ryzen™ Threadripper™ processors

(Please refer "CPU Support List" for more information.)

Chipset

1. AMD TRX40

Memory

1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory

2. Quad Channel memory architecture

3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Audio

1. Realtek® ALC4050H codec+ Realtek® ALC1220-VB codec

2. Support for DTS:X® Ultra

3. High Definition Audio

4. 2/4/5.1/7.1-channel

5. Support for S/PDIF Out

LAN

1. 2 x Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

Intel® Wi-Fi 6 AX200

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

2. BLUETOOTH 5.0

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

3. 1 x PCI Express x1 slot

(All of the PCI Express slots conform to PCI Express 4.0 standard.)

Multi-Graphics Technology

1. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies

2. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies

Storage Interface

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)

2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)

2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)

3. 8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:

1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

2. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header

3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 2 x 8-pin ATX 12V power connectors

3. 1 x OC_PEG power connector

4. 1 x CPU fan header

5. 1 x water cooling CPU fan header

6. 2 x system fan headers

7. 4 x system fan/water cooling pump headers

8. 2 x addressable LED strip headers

9. 2 x RGB LED strip headers

10. 4 x M.2 Socket 3 connectors

11. 8 x SATA 6Gb/s connectors

12. 1 x front panel header

13. 1 x front panel audio header

14. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support

15. 2 x USB 3.2 Gen 1 headers

16. 2 x USB 2.0/1.1 headers

17. 1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector

18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

19. 1 x power button

20. 1 x reset button

21. 2 x temperature sensor headers

22. 1 x Clear CMOS jumper

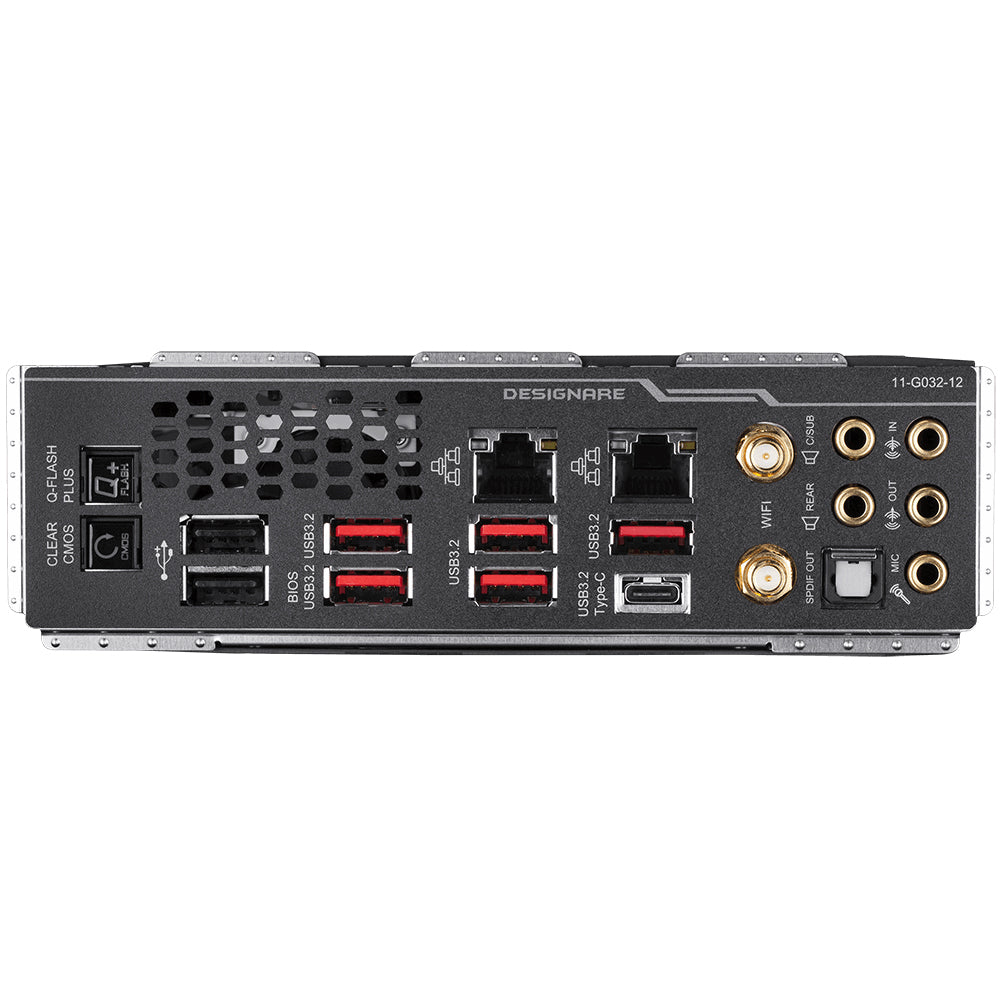

Back Panel Connectors

1. 1 x Q-Flash Plus button

2. 1 x Clear CMOS button

3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support

4. 5 x USB 3.2 Gen 2 Type-A ports (red)

5. 2 x USB 2.0/1.1 ports

6. 2 x RJ-45 ports

7. 2 x SMA antenna connectors (2T2R)

8. 1 x optical S/PDIF Out connector

9. 5 x audio jacks

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Overheating warning

6. Fan fail warning

7. Fan speed control

BIOS

1. 2 x 128 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. Support for DualBIOS™

4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

USB TurboCharger

2. Support for Q-Flash Plus

3. Support for Q-Flash

4. Support for Xpress Install

Bundled Software

1. Norton® Internet Security (OEM version)

2. cFosSpeed

3. XSplit Gamecaster + Broadcaster (12 months license)

Operating System

1. Support for Windows 10 64-bit

Form Factor

1. XL-ATX Form Factor; 32.5cm x 26.9cm
