( WIFI DDR5 ATX) ,(ROG STRIX Z790-H)أسوس , اللوحة الأم للألعاب

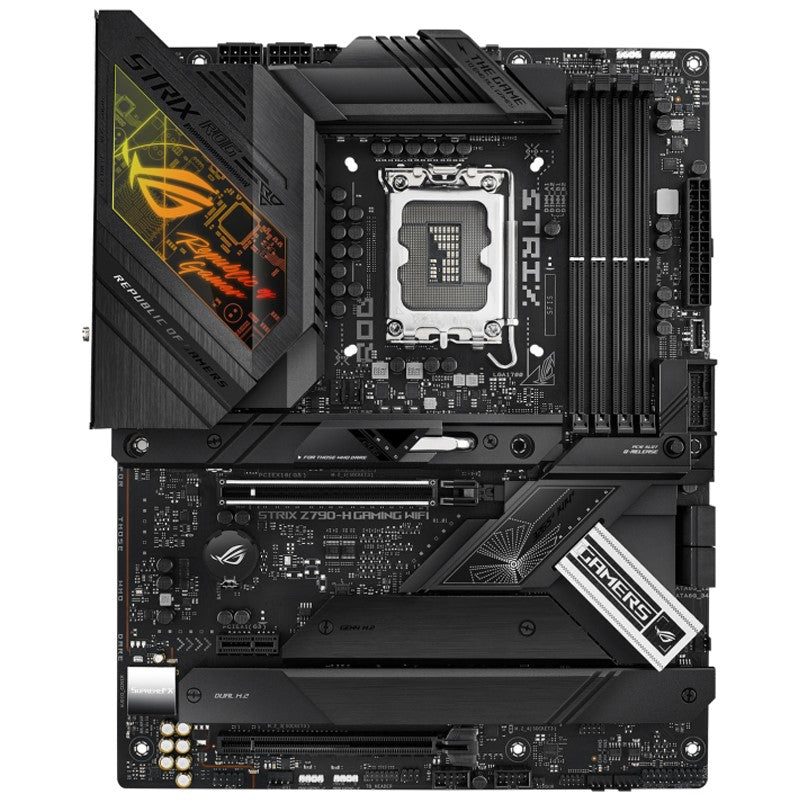

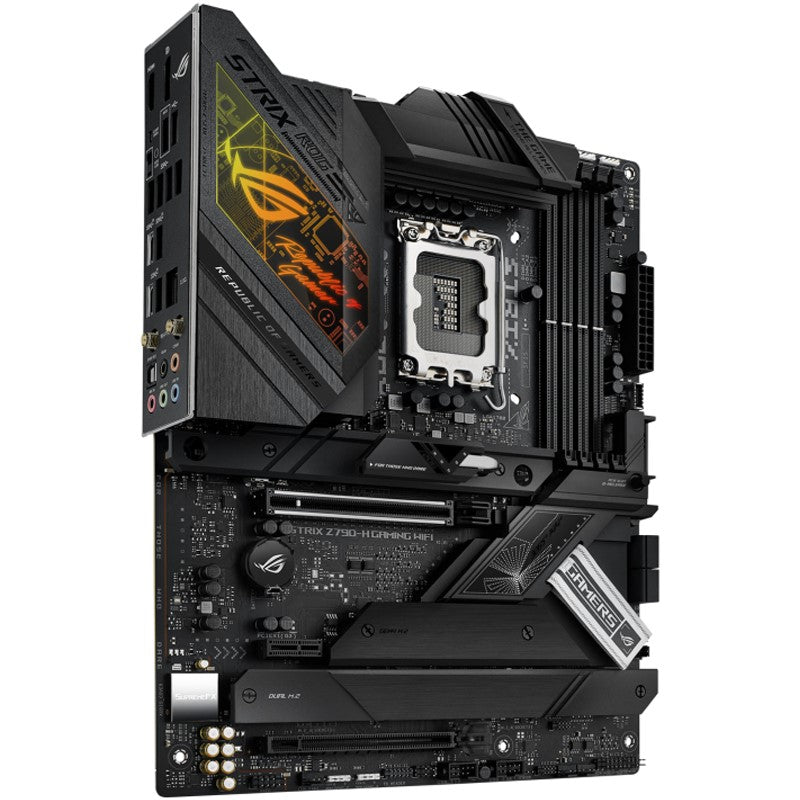

Asus ROG STRIX Z790-H GAMING WIFI DDR5 ATX Gaming Motherboard

AI Overlocking

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

PCIE 5.0

The Strix Z790-H adds PCIe 5.0 support to its arsenal with an x16 expansion slot that’s protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards.

Four PCIe 4.0 M.2 slots are covered with substantial heatsinks to dispatch the heat of high-performance SSDs.

Power Architecture

16 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

DDR5 Domination

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-H, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

VRM Heatsink Array

A robust cooling array leverages two heatsinks connected with a heatpipe, along with airflow channels cut into the aluminum. These features synergize to efficiently dissipate heavy thermal loads with ease.

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-H implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels.

Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets

Outshine the Competition

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

SONIC STUDIO III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

CPU

Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5

7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800

Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI® port***

* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel Z790 Chipset

1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)

1 x PCIe 3.0 x1 slot

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.3

* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

Impedance sense for front and rear headphone outputs

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

Supports up to 32-Bit/192 kHz playback*

Audio Features

SupremeFX Shielding Technology

Savitech SV3H712 AMP

Rear optical S/PDIF out port

Premium audio capacitors

Audio cover

 *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi Module

1 x Intel 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack  button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt  header

Special Features

Extreme Engine Digi+

 5K Black Metallic Capacitors

ASUS Q-Design

 M.2 Q-Latch

PCIe Slot Q-Release

 Q-DIMM

 Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

 Q-Slot

ASUS Thermal Solution

M.2 heatsink backplate

 M.2 heatsink

VRM heatsink design

ASUS EZ DIY

 BIOS FlashBack button

 BIOS FlashBack LED

Clear CMOS button

CPU Socket lever protector

 ProCool II

Pre-mounted I/O shield

 SafeSlot

SafeDIMM

Aura Sync

Aura RGB header

Addressable Gen 2 headers

Software Features

ROG Exclusive Software

GameFirst VI

ROG CPU-Z

Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

 Sonic Radar III

 DTS Sound Unbound

ASUS Exclusive Software

Armoury Crate

 AIDA64 Extreme (60 days free trial)

 Aura Creator- Aura Sync

 Fan Xpert 4 (with AI Cooling II)

 Power Saving

 Two-Way AI Noise Cancellation

AI Suite 3

 Easy Optimization with AI Overclocking

TPU

DIGI+ VRM

 Turbo app

PC Cleaner

System Information

MyAsus

Norton 360 for Gamers

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

 ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

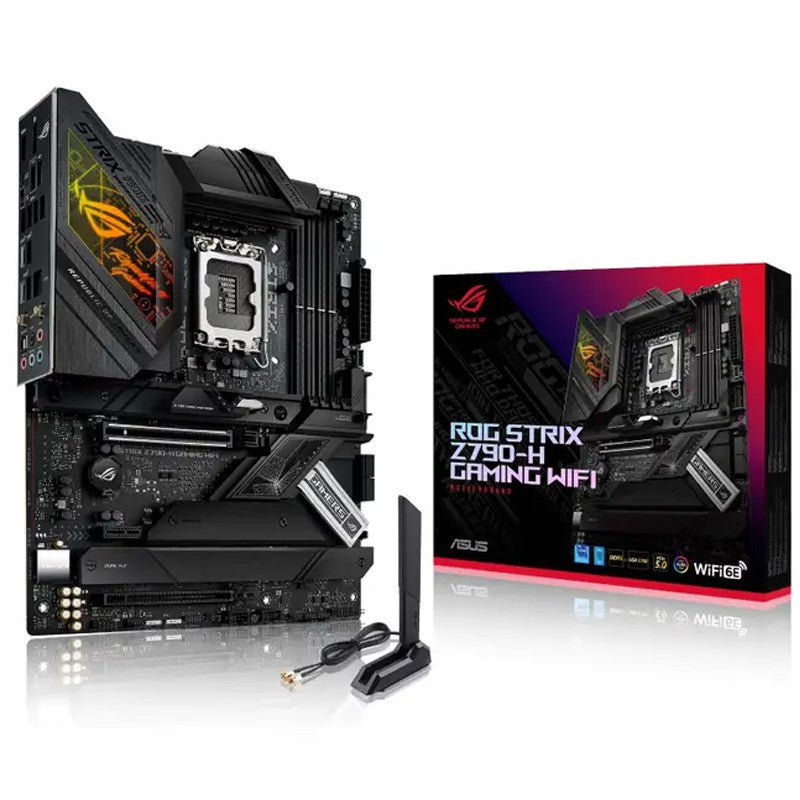

Accessories

Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties package

1 x M.2 backplate Q-Latch package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

2 x M.2 Rubber Packages

1 x M.2 backplate Rubber

PackageDocumentation

1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
