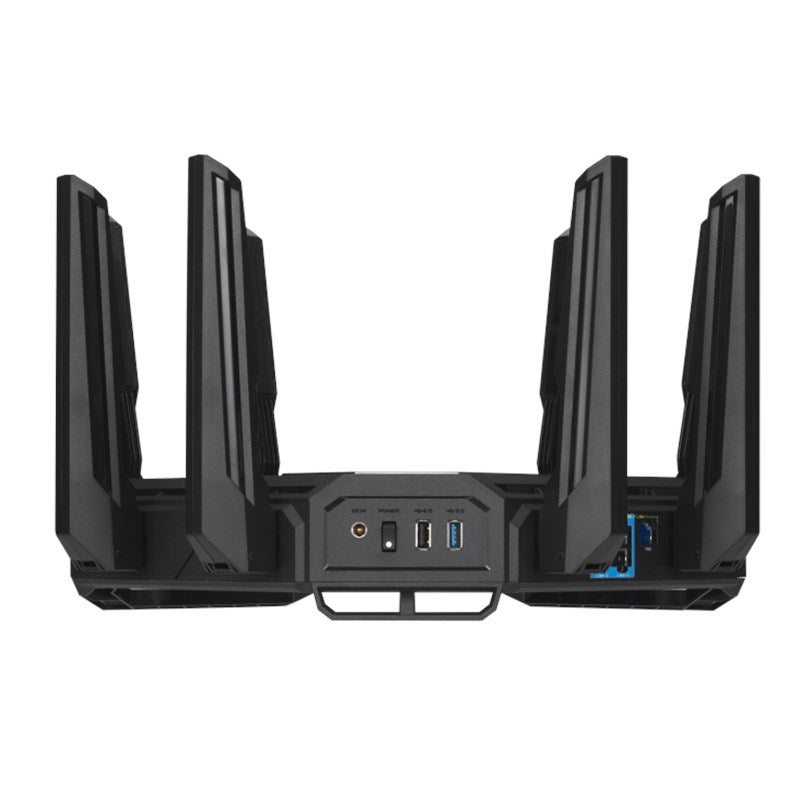

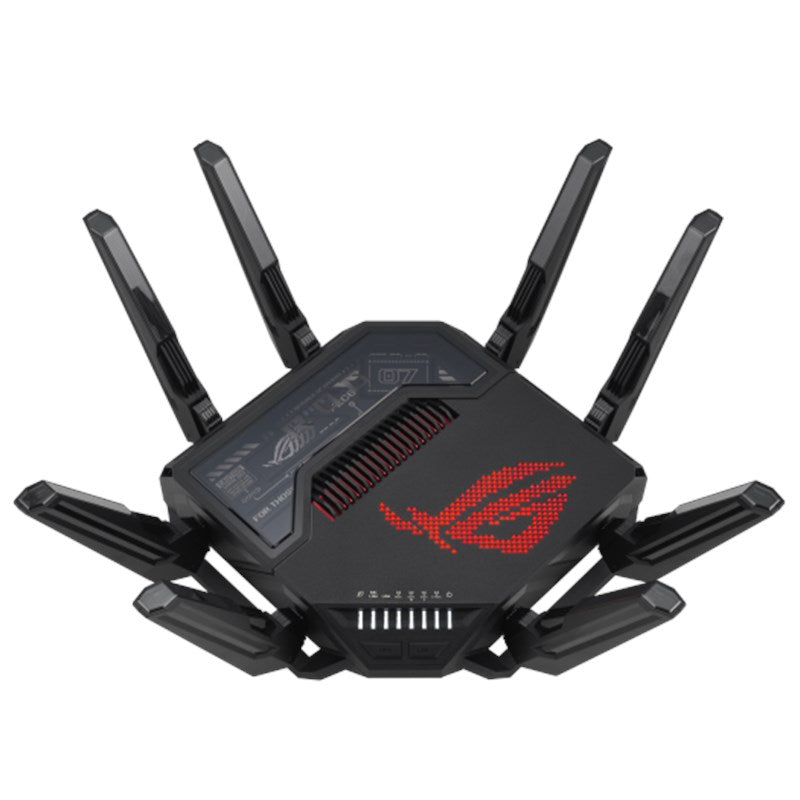

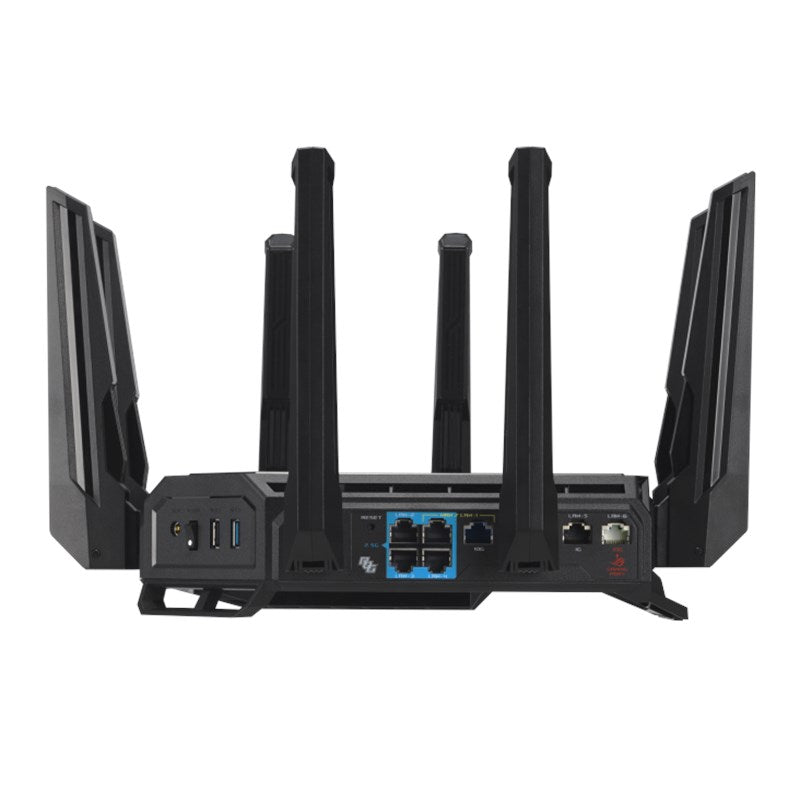

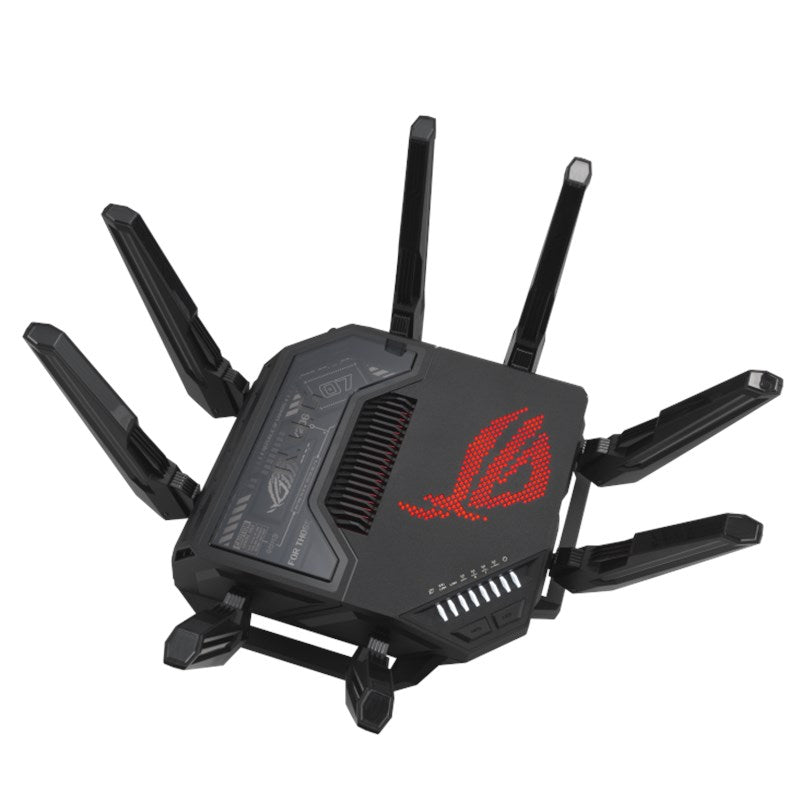

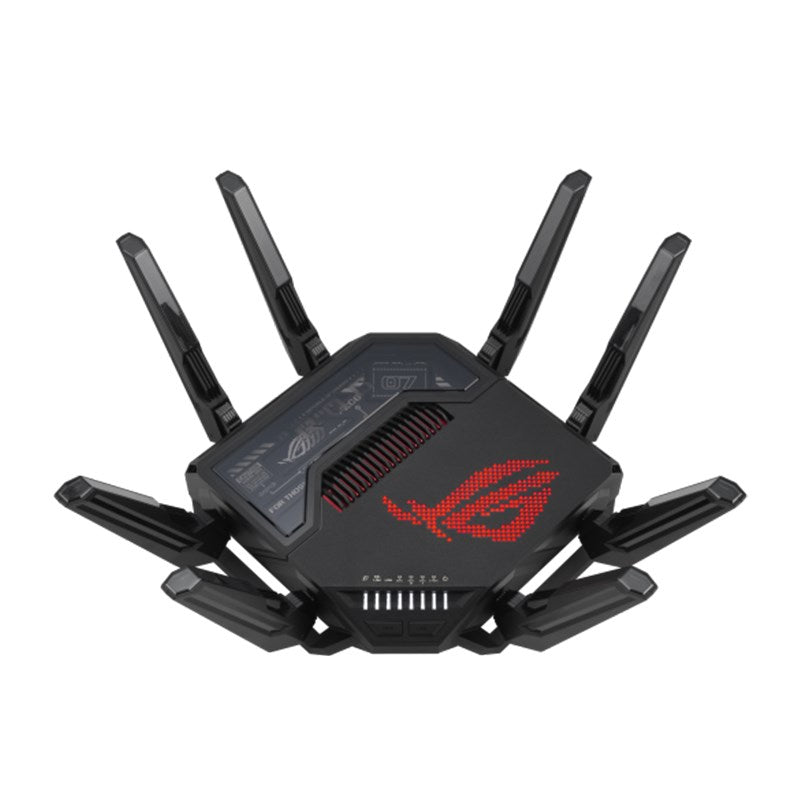

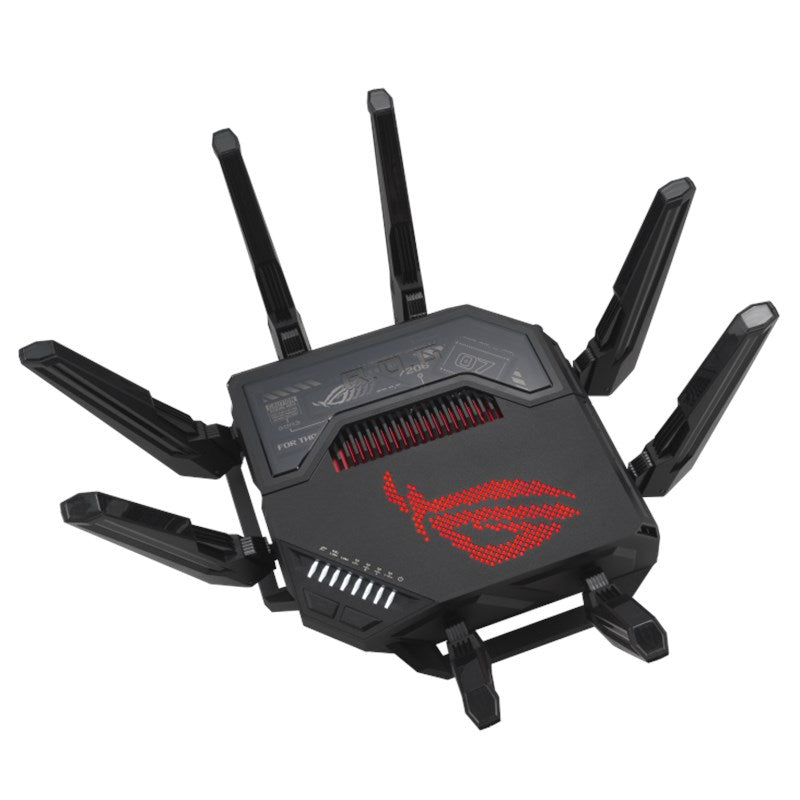

Asus GT-BE98 Quad-band Wi-Fi 7 (802.11be) Gaming Router

Asus GT-BE98 Quad-band Wi-Fi 7 (802.11be) Gaming Router

Game Beyond Speeds

The Rapture series continues to push the boundaries of what is possible for gaming and networking. The ROG Rapture GT-BE98 is a quad-band Wi-Fi 7 gaming router tailored for next-gen computing, with speeds of up to 25 Gbps and dual 10 Gbps ports.

Leap Forward with Wi-Fi 7

Wi-Fi 7 (IEEE 802.11be) packs all the benefits of Wi-Fi 6/6E and expands several existing Wi-Fi standards to a whole new level, such as 320 MHz bandwidth and 4K-QAM. And it introduces some revolutionary features like Multi-Link Operation. These combined technologies provide beyond fast speeds, extremely low latency and enhanced reliability. You can enjoy unparalleled network experiences in any online battlefield.

Forged for Performance

ROG Rapture GT-BE98 is equipped with cutting-edge technology and innovative designs, ensuring that you can enjoy the ultimate performance without compromising.

The Next-gen Powerhouse

The ROG Rapture GT-BE98 is powered by a powerful quad-core 2.6 GHz CPU and Wi-Fi chipset, giving it the performance to handle even the most demanding scenarios, such as 10 Gbps Wi-Fi connections, next-gen cloud-based computing, cloud gaming and cloud AI.

Eliminate Wi-Fi Dead Zones

The ROG Rapture GT-BE98 is equipped with eight sturdy external antennas and sixteen powerful internal dipole antenna elements, while each radio frequency chain has an independent high-power amplifier. Four antennas feature a dual-feed design using copper tubes that provide high efficiency and significantly enhanced signal strength. This optimized antenna array ensures better signal isolation for simultaneous transmission and reception at different frequencies in adjacent bands.

Triple-level Game Acceleration

Say goodbye to high ping. The GT-BE98 boosts your PC gaming traffic every step of the way, from your PC gaming port all the way to the game server.

Mobile Game Mode

Prioritize the network traffic of your favorite mobile game, minimizing lag and latency with just a tap on the ASUS Router mobile app.

Easy Game Console Port Forwarding

Using OpenNAT on GT-BE98 couldn’t be easier. Enjoy faster connection speed, shorter lobby wait times and smoother gameplay with legacy game consoles or popular gaming handhelds.

AiProtection Pro

Ever-evolving online threats such as malicious website phishing, webcam hacking or ransomware can result in a loss of privacy and finances. The ROG Rapture GT-BE98 includes commercial-grade AiProtection Pro powered by Trend Micro ™ to shield your network from cyber threats.

Network Standard

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IPv4

IPv6

Product Segment

BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps

WiFi Data Rate

2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps

5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp

5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp

6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Antenna

External antenna x 8

Transmit / Receive

2.4GHz 4x4

5GHz-1 4x4

5GHz-2 4x4

6GHz 4x4

Processor

2.6GHz quad-core processor

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160/320 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz / 6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports

1 x 10Gbps for WAN/LAN

1 x 2.5Gbps for WAN/LAN

1 x 10Gbps for LAN

3 x 2.5Gbps for LAN

1 x RJ45 10/100/1000Mbps for LAN

1 x USB 3.2 Gen1

1 x USB 2.0

Buttons

WPS Button, Reset Button, Power Switch, LED control Button

LED Indicator

WAN(Internet) x1

10G LAN x1

1G/2.5G LAN x1

6GHz x1

5GHz-1 x 1

5GHz-2 x 1

2.4GHz x1

Power x1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 19.5 V with max. 3.33 A current

Product Weight (g)

2000 g

Product Dimensions

350.41 x 350.41 x 220.6mm

AiMesh

AiMesh

Primary AiMesh Router

AiMesh Node

Game

Game Boost / Acceleration

WTFast

ROG_First

OpenNAT (Game Profile)

Gaming Port

Parental Control

Allow you to block access to unwanted websites and apps.

Parental Control Customized Internet Schedule

Maximum Parental Control profile : 64

Maximum Parental Control content filter rule : 64

Guest Network

The Guest Network provides Internet connection for guests but restricts access to your local network.

Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

WAN

Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP

Dual WAN

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

Maximum Port Forwarding Rule : 64

Port Triggering

Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server

IPTV

LAN Link Aggregation

Manually Assign IP Address

Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
