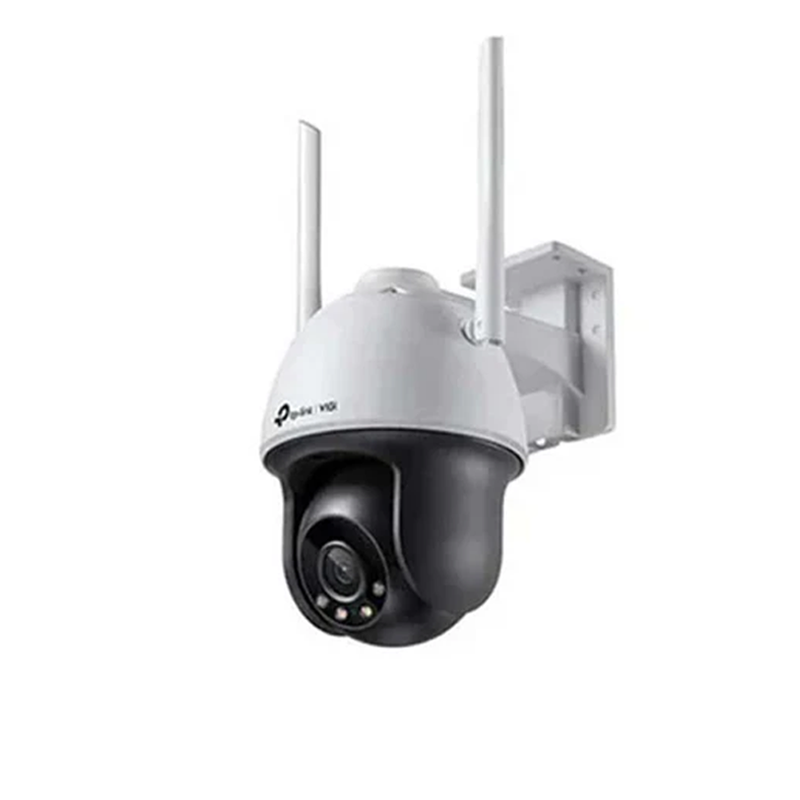

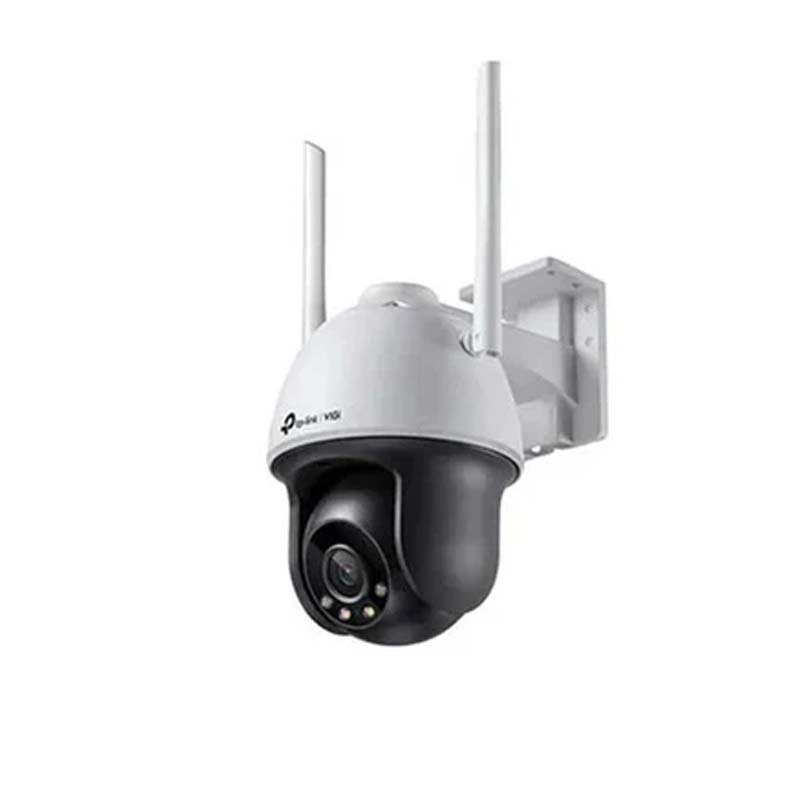

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera

Powerful Pan Tilt

Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property

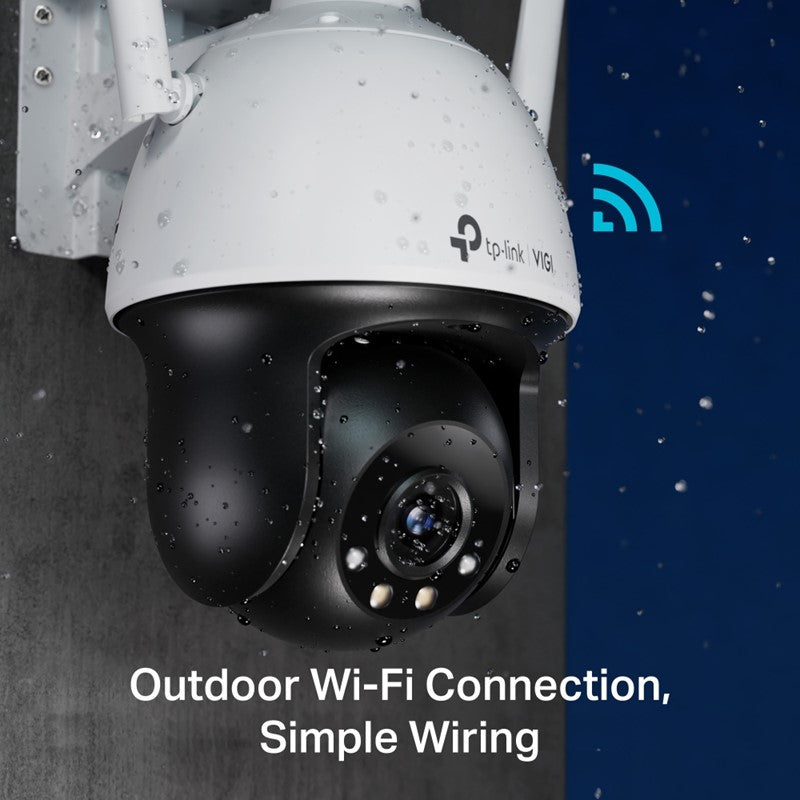

Outdoor Wi-Fi Connection, Simple Wiring

Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights

Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense

Warn potential intruders instantly with sound and light when abnormal events are detected

Every Event is Under Your Control.

VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality

Flexible Management and Storage

Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as on-board storage with an SD card slot.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Image Sensor

1/3” Progressive Scan CMOS

Lens

Fixed focal lens (4 mm)

Day/Night Switch

Unified/ Scheduled/ Auto

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP66

IR Working Distance

30m

Pan/Tilt Range

Pan: 0° to 350°, Tilt: 0° to 120°

Shutter Speed

1/3 to 1/10000 s

Aperture

4 mm: F1.6

Lens Mount

M12

Illumination Distance

30 m

Viewing Angle

(4mm) Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93°

Digital Zoom

Yes

Slow Shutter

Yes

Minimum Illumination

0 lux with IR/white Light

Day/Night Mechanism

IR Cut Filter

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Wireless Rate

11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)

Wireless Security

WPA/WPA2-PSK

ONVIF

Yes

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Web Browser

Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Frequency

2.4 GHz

GENERAL

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Package Contents

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories (Screws, Drywall Anchors, Hex Key)

Dimensions( H X W X D )

120 × 172 × 198 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements

12V DC ± 5%, 5.5mm Coaxial Power Plug

Net Weight

0.62 Kg

Gross Weight

1.21 Kg

Power Consumption

12V DC: Max 15.5W

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug

Antenna

Quantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi

Protection

IP66

Product Dimensions (L x W x H)

120 × 172 × 198 mm (excluding antennas)

Certifications

CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC

Interfaces

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input

Built-in Microphone

Audio Output

Built-in Speaker

Alarm

N/A

Reset Button

Yes

Power

DC Power Port

Button

Reset Button

Slot

Micro SD card

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker

Yes

Audio

N/A

Alarm and Event Management

Smart Event

Area Intrusion Detection, Line-Crossing Detection, People Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage

Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method

N/A

Output Notification

Message Push

Wireless

Standards

IEEE 802.11b/g/n

WiFi Channels

UN: 1-13
US: 1-11

Frequency

2.4 GHz

Wireless Transmit Power

High

Auto Wireless Channel

N/A

Wireless Statistics

N/A

Throughput Mornitor

N/A

Radio Bandwidth

Auto: N/A
20M: Yes
40M: Yes

Wireless Rate

11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)

Wireless Security

WPA/WPA2-PSK

Wireless Mode

AP, AP Client

Video/Image

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240

Video Streaming

Main Stream
Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Smart Feature Set

Smart Event

Area Intrusion Detection, Line-Crossing Detection, Human Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception ( illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region

Audio

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

PTZ

Pan/tilt Range

Pan: 0° to 350°, Tilt: 0° to 120°

Pan/tilt Speed

Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s

Manual Control Speed

Configurable from 8° to 35°/s

Presets

300

Patrol Scan

8 patrols, up to 8 presets for each patrol

Power-off Memory

Yes;
Auto restore to previous PTZ and lens status after power failure

Park Action

Yes;
Preset; Patrol Scan

3D Positioning

Yes

ILLUMINATOR

IR LED

Quantity: 2
Range: 30m
Wavelength: 850nm

White LED

Quantity: 2
Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Lens

Type

Fixed Focal Lens

Focal Length

4 mm

Aperture

F1.6

FOV

4mm:
Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount

M12

DORI Distance

4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

Angle Adjustment (MANUAL)

Range

Pan: 0° to 348°
Tilt: 0° to 120°

VIDEO

Max. Resolution

2560 X 1440

Main Stream

Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream

Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes
