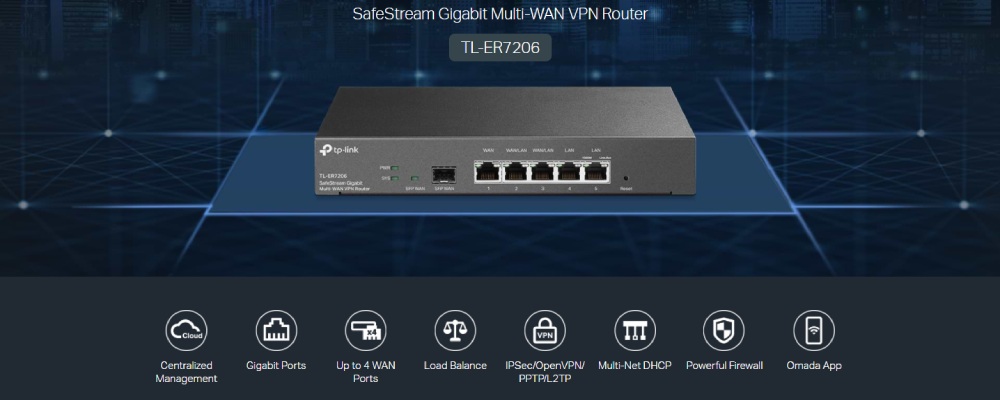

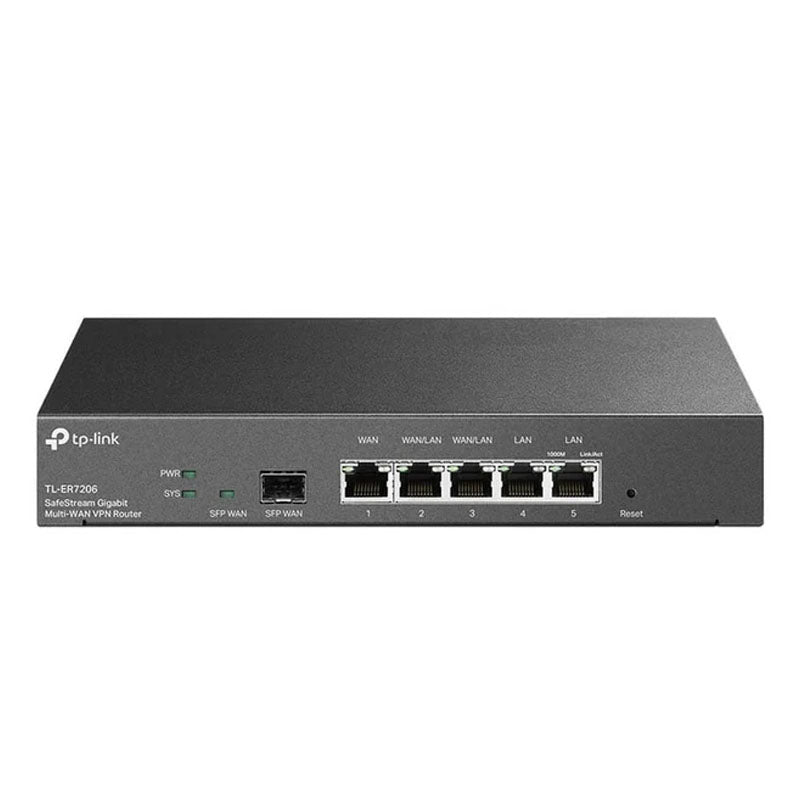

TP-Link SafeStream Gigabit Multi-WAN VPN Router

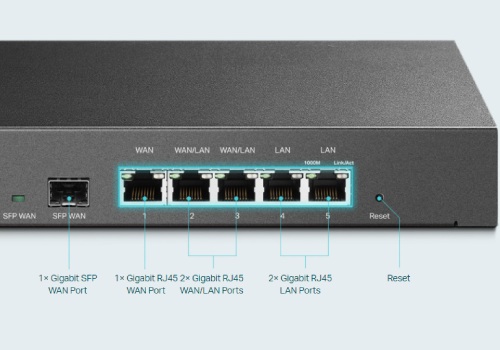

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage

One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

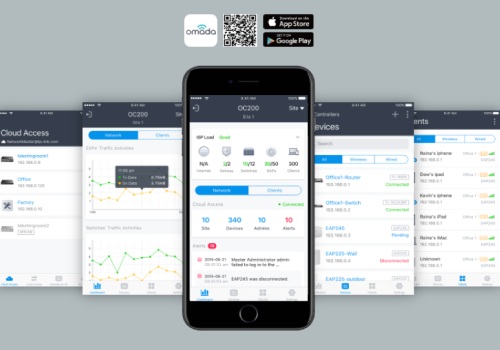

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a smartphone or tablet.

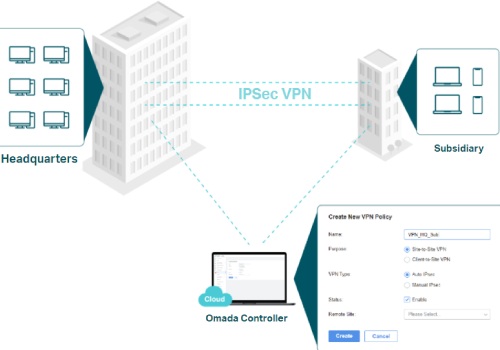

Highly Secure VPN

TL-ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Brand

TP-Link

Type

Router

Interface

1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

Power Supply

100–240 V~50/60 Hz

DRAM

512MB

Dimensions ( W x D x H )

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Advanced Routing

Static Routing
Policy Routing

Bandwidth Control

IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth

Load Balance

Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection

Security

SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management

Session Limit

IP-based Session Limit

Environment

100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2*
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
