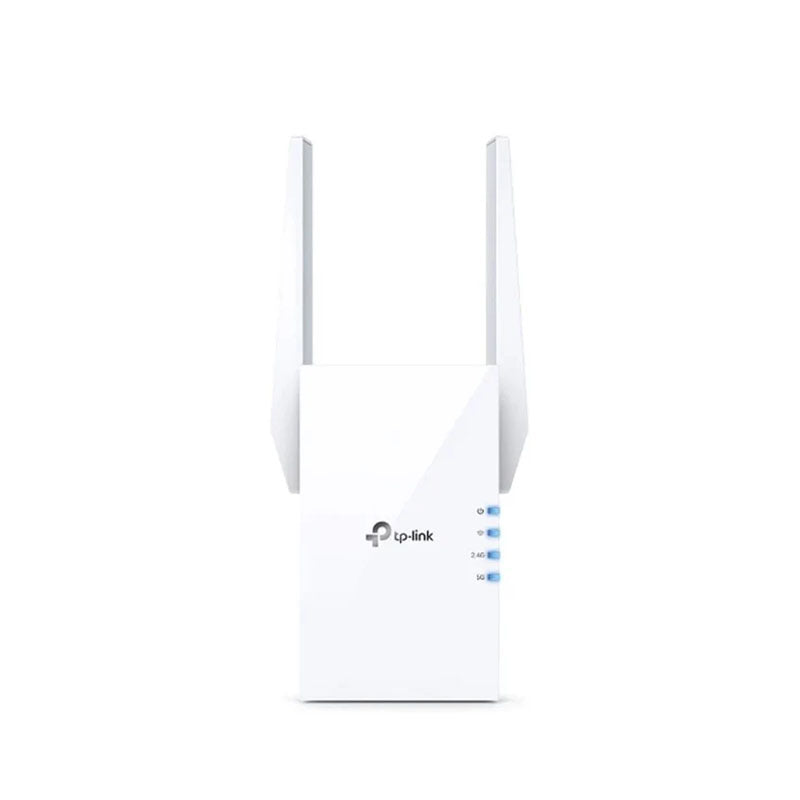

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender

Cutting-Edge Wi-Fi 6

The latest WiFi technology eliminates annoying lag, endless loading, and dead spots

Enjoy the future of faster network connections.

OneMeshTM Technology

 Create a mesh network using compatible routers, like Archer A7, and range extenders so you never switch networks or lose signal.

Fill Every Inch Of Your Home With Wi-Fi 6

The RE505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge-watch your favorite show anywhere.

Extend WiFi Coverage

Eliminate WiFi dead zones by expanding high-performance WiFi using specially designed high-gain antennas.

Set Up In Minutes

Easily set up and manage your WiFi in a few quick and easy steps using the intelligent signal indicator and TP-Link Tether app (Android, iOS).

Adaptive Path Selection

Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.

High-Speed Mode

Use both WiFi bands to enjoy super-fast connections —ideal for HD streaming and gaming.

Ports

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button

Power Consumption

10W

Dimensions ( W x D x H )

2.9×1.8×4.9 in. (74.0×46×124.8 mm)

Antenna

2 External Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Reception Sensitivity

5GHz:

11a 6Mbps: -93dBm,

11a 54Mbps: -75dBm

11ac HT20 MCS0: -92dBm,

11ac HT20 MCS8: -70dBm

11ac HT40 MCS0: -90dBm,

11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm,

11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,

11n HT20 MCS7: -75dBm

11n HT40 MCS7: -72dBm

Transmit Power

CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA-PSK2 encryptions

OTHERS

Package Contents

Wi-Fi Range Extender RE505X

Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Certifications

FCC, RoHS
