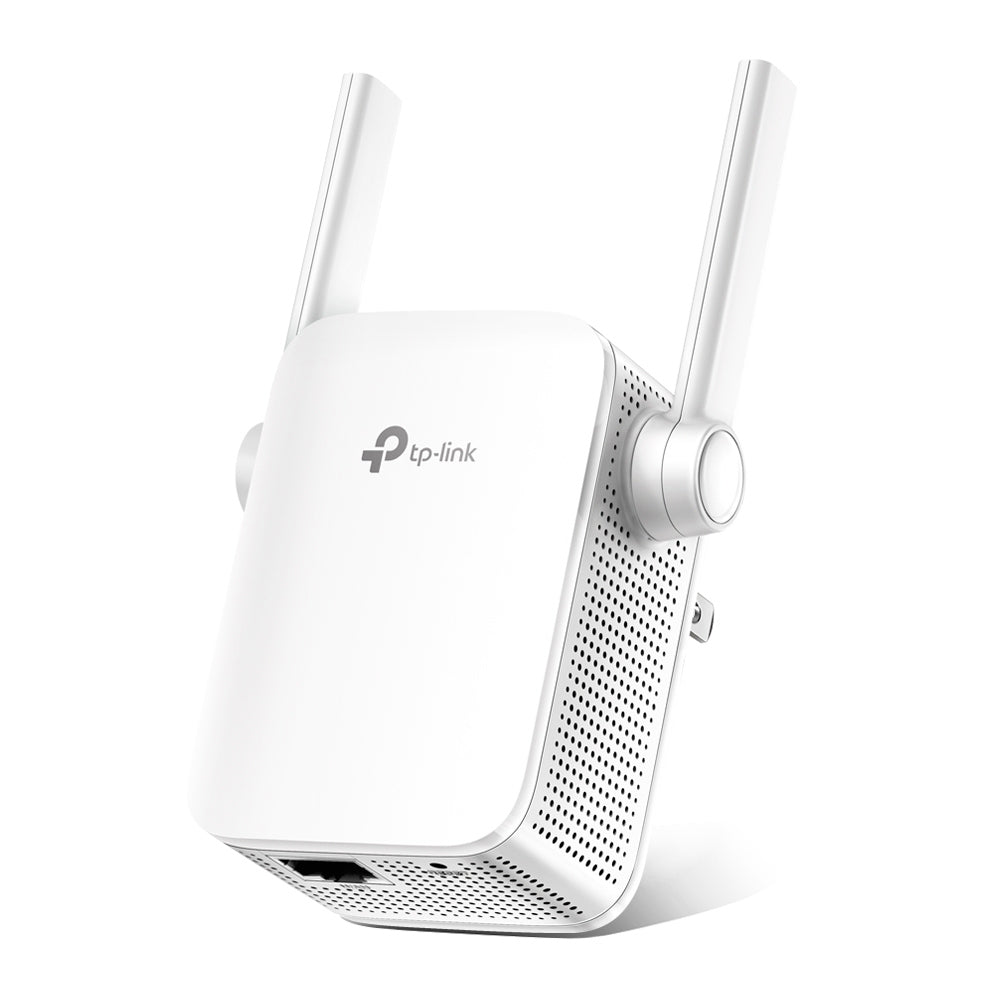

TP-Link RE205 AC750 Wireless Range Extender

Easily Expand Your Wi-Fi Coverage

Tired of Wi-Fi dead zones in your home The RE205 Range Extender connects to your Wi-Fi router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own, while reducing signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

High-Speed Dual Band Wi-Fi for Better Connections

The RE205 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 433Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.

Built-in Access Point Mode

RE205 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual-band wireless access point.

Easy Management and Remote Control

The RE205 works with all Wi-Fi routers. You can use TP-Link's Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich app allows you to enjoy not only hassle-free installation but also access to advanced network management, all at your fingertips.

Specifications:

Plug Type

US

Standards and Protocols

IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b

Interface

1 x 10/100M Ethernet Port (RJ45)

Button

WPS Button, Reset Button

Power Consumption

7.3W（max power consumption）

Dimensions ( W x D x H )

3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)

Antenna

2 x external

WIRELESS FEATURES

Frequency

2.4GHz & 5GHz(11ac)

Signal Rate

5GHz:Up to 433Mbps

2.4GHz:Up to 300Mpbs

Reception Sensitivity

5GHz：

11a 6Mbps: -94dBm@10% PER

11a 54Mbps: -77dBm@10% PER

11ac HT20: -69dBm@10% PER

11ac HT40: -66dBm@10% PER

11ac HT80: -63dBm@10% PER

2.4GHz

11g 54Mbps: -79dBm@10% PER

11n HT20: -77dBm@10% PER

11n HT40: -74dBm@10% PER

Wireless Modes

Range Extender/Access Point

Wireless Statistic

Concurrent Mode boost both 2.4G/5G Wi-Fi band

Wireless Functions

Wireless Statistic

Concurrent Mode boost both 2.4G/5G Wi-Fi band

Access Control

LED Control

Domain Login Function

Wireless Security

64/128-bit WEP

WPA-PSK / WPA2-PSK

Transmission Power

<19.5dBm(2.4GHz)

<19.5dBm(5GHz)
