TerraMaster 320 TB D16 Thunderbolt 3 16-Bay Professional Raid Hard Disk

TerraMaster 320 TB D16 Thunderbolt 3 16-Bay Professional Raid Hard Disk

Drawing on a pair of Thunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the TerraMaster D16 Thunderbolt 3 16-Bay RAID Array delivers transfer speeds up to 2817 MB/s under RAID 0 array mode. Under RAID 6, the device can achieve speeds up to 2480 MB/s.

Cut down on time needed for virtually every aspect of the post-production workflow when using the D16 Thunderbolt 3. At lightning speed, users can transfer several hours of footage from a Blackmagic device to Adobe Premiere Pro.

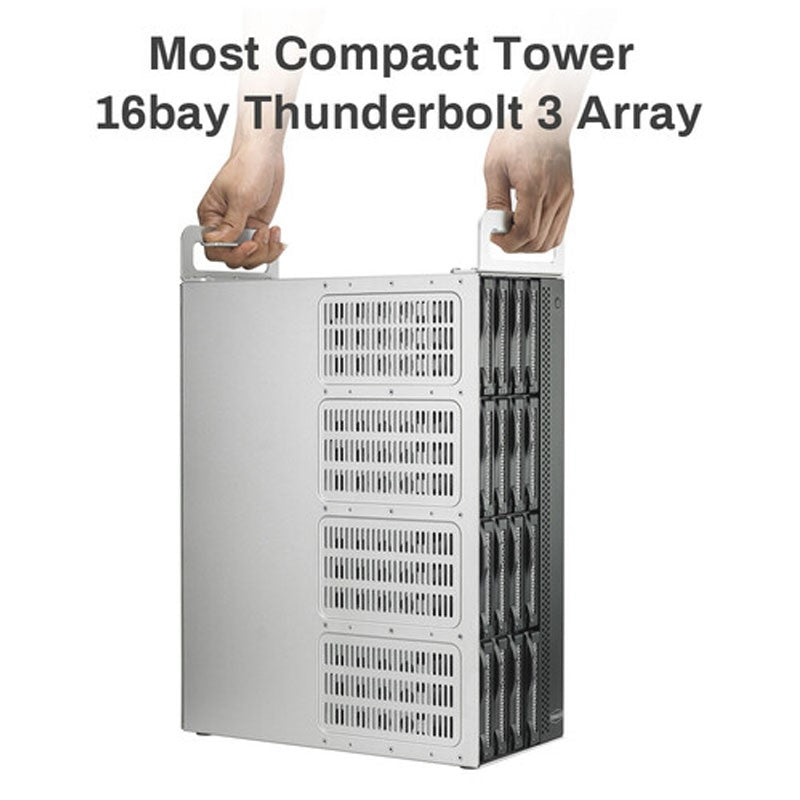

The D16 has a compact design that saves a lot of space, making it suitable for small video production teams and designers with limited desktop room.

It also has a specially designed handle that makes it easy to carry, facilitating the work of video production teams by greatly increasing convenience when out and about.

Number of Bays

16x 2.5"/3.5" SAS (Unspecified Version), SATA (Unspecified Version)

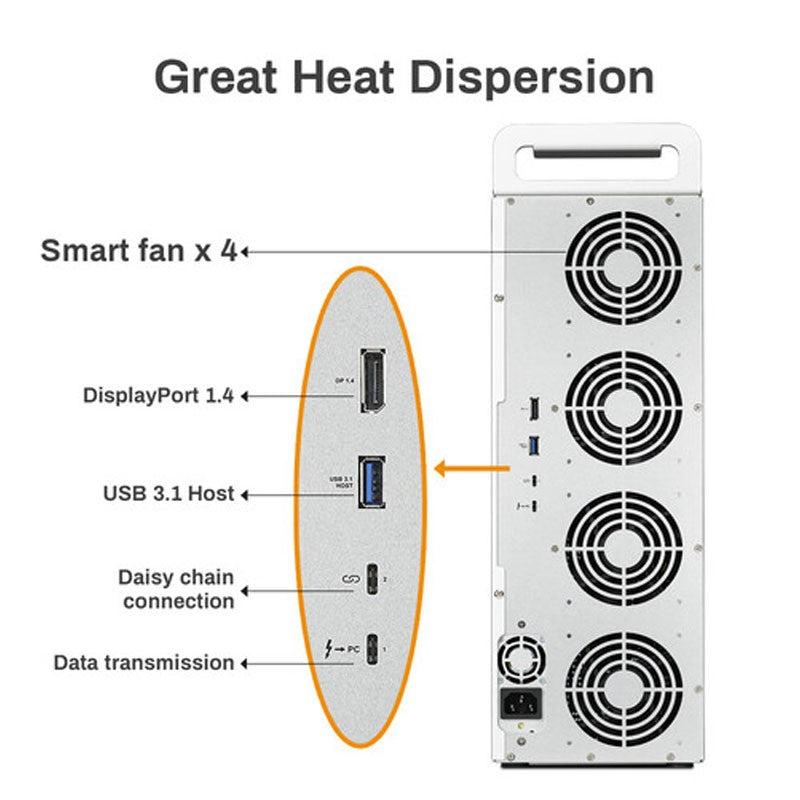

Inputs/Outputs

2x USB-C Thunderbolt 3 (40 Gb/s)

1x USB-A 3.1/3.2 Gen 2

1x DisplayPort 1.4

Form Factor

Tower

RAID Support

RAID 0/1/5/6/JBOD

Hot-Swap Support

Yes

Transfer Rates

2817 MB/s (Read in RAID 0)

2660 MB/s (Read in RAID 5)

1022 MB/s (Write in RAID 0)

1070 MB/s (Write in RAID 5)

OS Compatibility

Windows

macOS

Input Power

100 to 240 VAC, 50 / 60 Hz

Power Source

Internal Power Supply

Power Consumption

230 W

PSU Wattage

1 x 550 W
