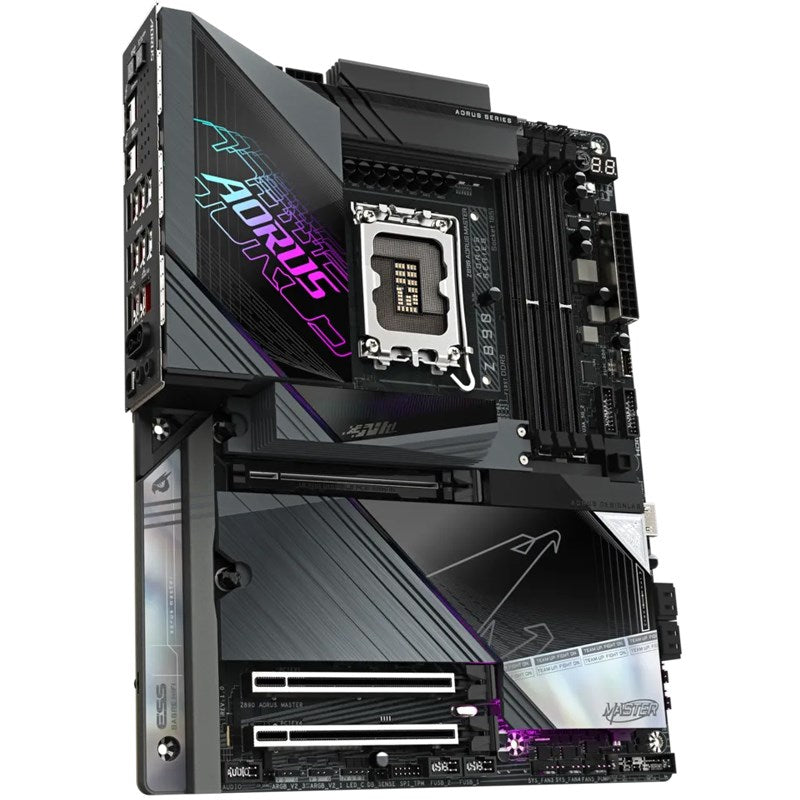

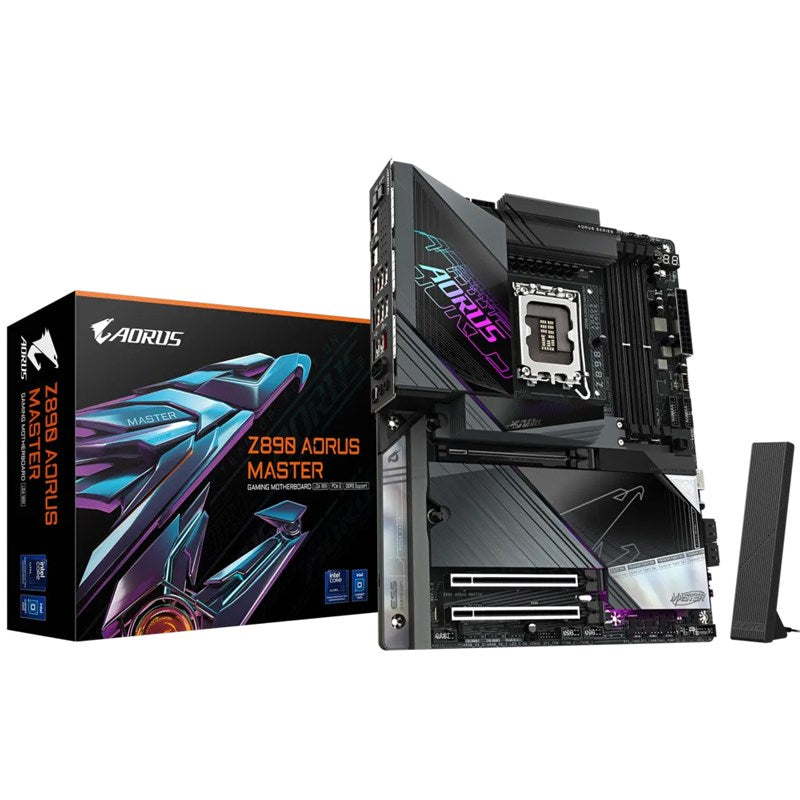

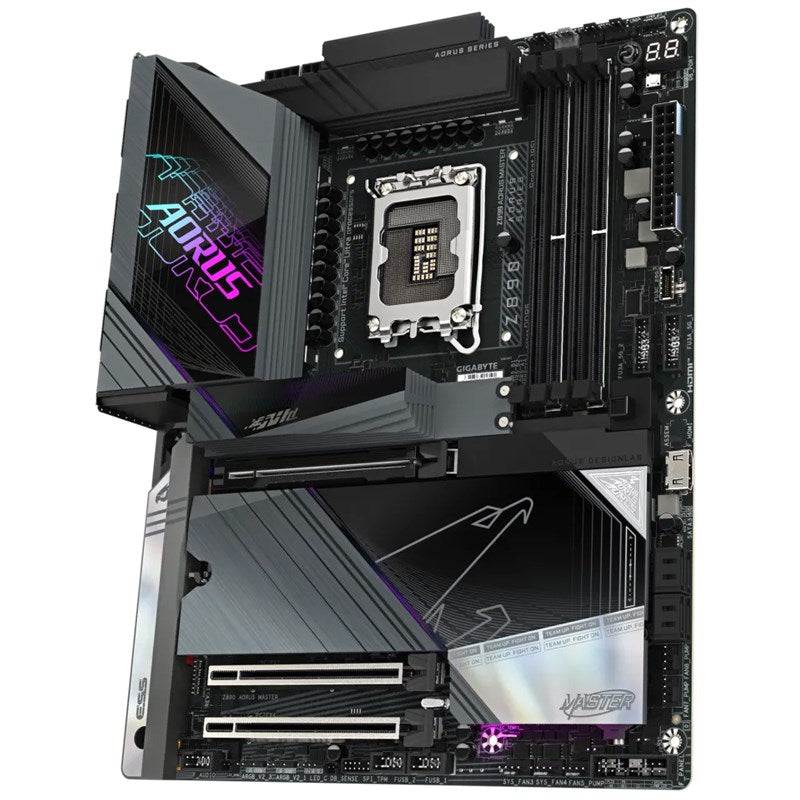

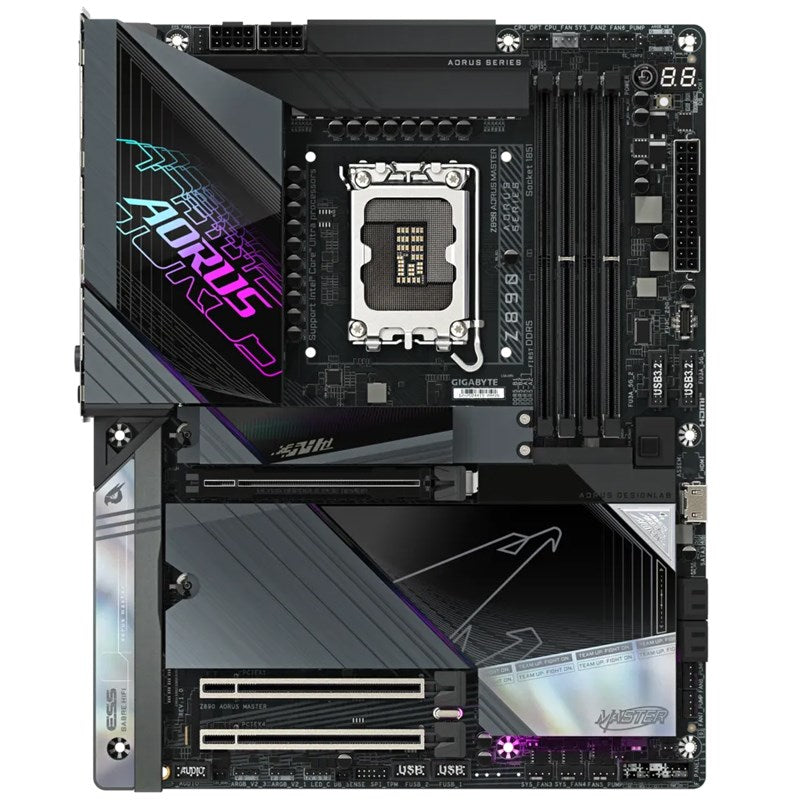

Gigabyte Z890 AORUS MASTER WIFI 7 ATX Gaming Motherboard

Gigabyte

Gigabyte Z890 AORUS MASTER WIFI 7 ATX Gaming Motherboard

Name: Gigabyte Z890 AORUS MASTER WIFI 7 ATX Gaming Motherboard
Brand: Gigabyte
SKU: Z890 AORUS MASTER
Price: 219.0 KWD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Product SKU: Z890 AORUS MASTER

Was :

219.000 KD

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports Intel Core Ultra processors (Series 2)

Digital twin 18+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AORUS AI SNATCH: Auto-Overclocking Software by AI models

AI Perfdrive: Provides optimal and customized BIOS preset profile for users

Premium Compatibility: 4*DDR5 with XMP Memory Module Support

DDR Wind Blade: Enhanced Active Cooling for Memory Modules

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click: M.2 heatsinks with screwless design

Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

New Power Monitor in HWinfo for real-time monitoring on CPU power phases

Ultra-Fast Storage: 5*M.2 slots, including 2* PCIe 5.0 x4

Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL

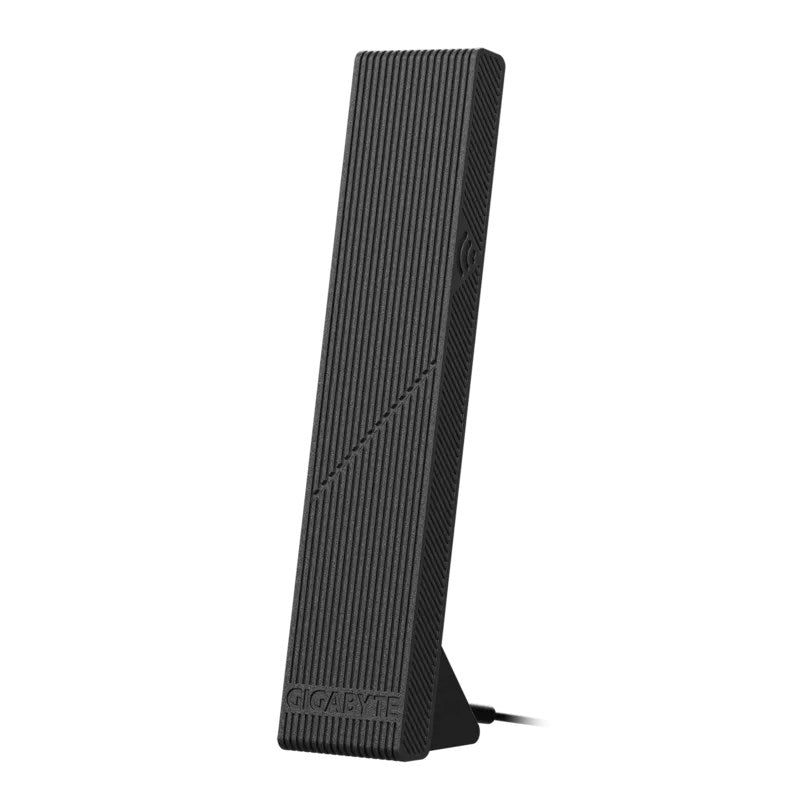

Fast Networking: 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity: Dual THUNDERBOLT™ 4 Type-C with DP-Alt

DTS: X Ultra Audio: ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC

Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability

PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Z890 AORUS MASTER

Specifications:

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
Chipset	Intel® Z890 Express Chipset
Memory	Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	Support CUDIMM memory module
	The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
	When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
	When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
	* Support for DisplayPort 2.1 version and HDCP 2.3
	- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
	* Support for HDMI 1.4 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Audio	Realtek® ALC1220 CODEC
	* The front panel line out jack supports DSD audio.
	ESS ES9118 DAC chip
	Support for DTS:X® Ultra
	High Definition Audio
	2/4/5.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Marvell® AQtion AQC113C 10GbE LAN chip
	(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 7 BE200NGW
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 320MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
	** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.
	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
	Storage Interface
	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU:
	- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
	*Support up to 40Gbps with Thunderbolt devices
	*Support up to 20Gbps with USB4 devices
	*Support up to 10Gbps with USB 3.2 devices
	Chipset:
	- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	Chipset+USB 3.2 Gen 2x2 Hub:
	- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
	Chipset+2 USB 3.2 Gen 1 Hubs:
	- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
	Chipset+2 USB 2.0 Hubs:
	- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	4 x system fan headers
	4 x system fan/water cooling pump headers
	4 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	5 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
	2 x USB 3.2 Gen 1 headers
	2 x USB 2.0/1.1 headers
	1 x noise detection header
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x HDMI port (Note)
	1 x power button
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper
	2 x temperature sensor headers
	Voltage Measurement Points
	(Note) Actual support may vary by CPU

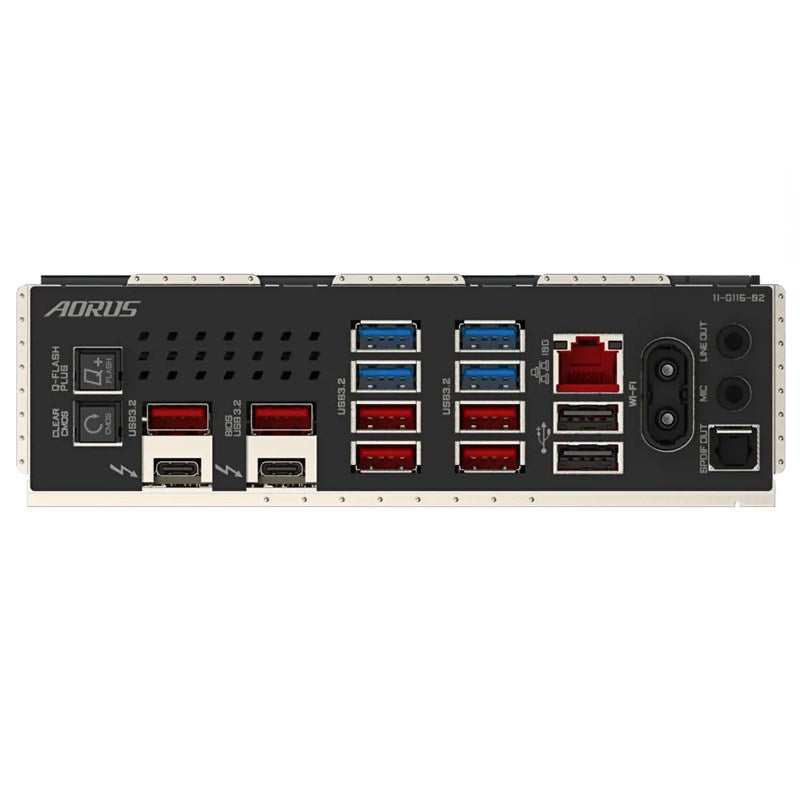

Back Panel Connectors	1 x Q-Flash Plus button
	1 x Clear CMOS button
	2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
	6 x USB 3.2 Gen 2 Type-A ports (red)
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x RJ-45 port
	2 x antenna connectors (2T2R)
	2 x audio jacks
	1 x optical S/PDIF Out connector
	I/O Controller
	iTE® I/O Controller Chip
	H/W Monitoring
	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
	Noise detection
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
