Asus

Asus Prime B760-PLUS ATX Gaming Motherboard

Product SKU: 90MB1EF0-M1EAY0

Was :

55.000 KD

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors

Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support

Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II

Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Asus Prime B760-PLUS ATX Gaming Motherboard

Specifications:

News & Updates	2024/08/12: New BIOS with Intel microcode (0x129) enhancing stability for Intel Core 13th and 14th Gen desktop processors.
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen Processors, Pentium® Gold, and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0/3.0
Chipset	Intel® B760 Chipset
Memory	4 x DIMM, Max. 192GB, DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800, Dual Channel Architecture
Graphics	1 x DisplayPort (4K@60Hz), 1 x VGA port, 1 x HDMI™ port (4K@60Hz)
Expansion Slots	1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1
Storage	3 x M.2 slots (PCIe 4.0), 4 x SATA 6Gb/s ports. Supports Intel® Rapid Storage Technology (SATA RAID 0/1/5/10).
Ethernet	Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Vertical M.2 slot (Key E, CNVi & PCIe). Wi-Fi module sold separately.
USB (Rear Ports)	1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
USB (Front Ports)	1 x USB 3.2 Gen 1 Type-C®, 1 x USB 3.2 Gen 1 header (supports 2 additional ports), 2 x USB 2.0 headers (supports 4 additional ports)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium capacitors, 24-Bit/192 kHz playback

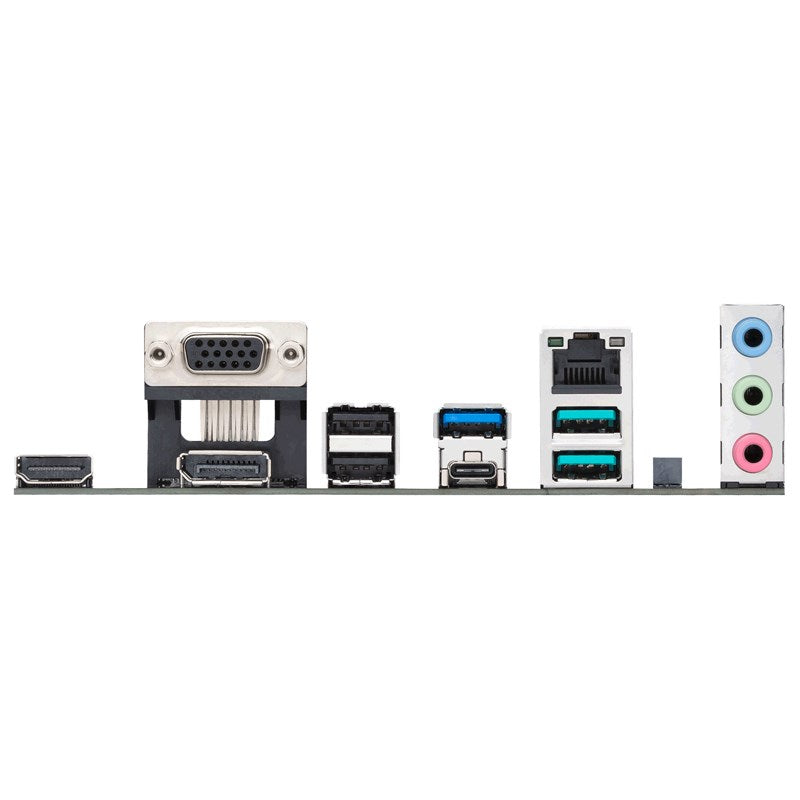

Back Panel I/O	USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 2 Type-A (x2), USB 3.2 Gen 1 Type-A, USB 2.0 (x2), DisplayPort, VGA, HDMI™, Realtek 2.5Gb Ethernet, Audio Jacks
Internal I/O Connectors	1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 3 x 4-pin Chassis Fan headers, 3 x M.2 slots, 4 x SATA 6Gb/s ports, Addressable RGB and Gen 2 headers
Special Features	ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), Aura Sync RGB
Software Features	Armoury Crate, Aura Creator, Fan Xpert 2+, AI Suite 3, ASUS EZ Flash 3, Norton 360 Deluxe (60 days), WinRAR
BIOS	128 Mb Flash ROM, UEFI AMI BIOS (with EZ Mode)
Manageability	WOL by PME, PXE
Form Factor	ATX, 12 x 9.6 inches (30.5 cm x 24.4 cm)
Accessories	2 x SATA 6Gb/s cables, 1 x I/O Shield, M.2 Rubber Package, 2 x Screw Packages for M.2 SSD, User guide
Operating System Support	Windows® 11, Windows® 10 64-bit
